Command Mobile Module connector for Starrett digital calipers and micrometers using the PT22938 SPC data cable. Enables automated, bi-directional wireless gage data collection — readings are triggered remotely from the MobileCollect Base Receiver or your SPC software. Available in 3.5″ (recommended for Series 721/723 calipers) and 6.5″ (recommended for Series 731/733 micrometers).
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 3.5″ (Series 721/723 calipers) | 6.5″ (Series 731/733 micrometers)
SKU – MC-D-PT22938-3.5 (3.5″) | MC-D-PT22938-6.5 (6.5″)
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – Yes
Connector IP Rating – N/A
Gage Brand – Starrett
$175.00

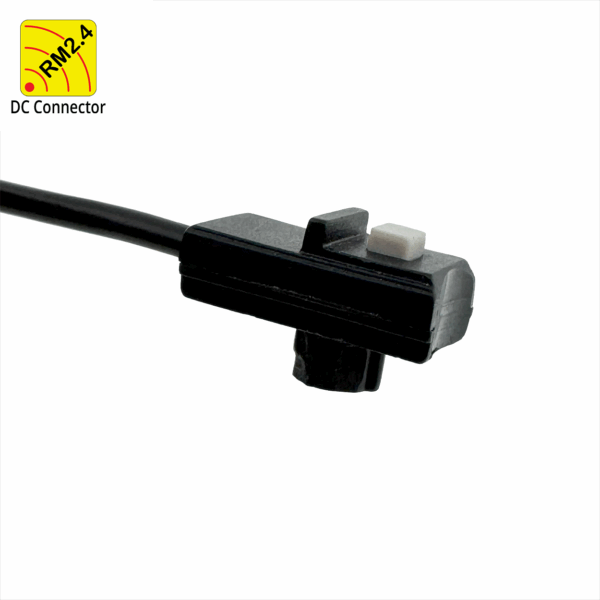

The DC Wireless Connector for Starrett PT22938 gages is the hardware link between your Starrett digital caliper or micrometer and the MobileCollect Wireless automated measurement collection system. Unlike the Mini Mobile Module EVO (M3E), the Command Mobile Module enables bi-directional wireless communication — readings are commanded remotely by the MobileCollect Base Receiver or your SPC software. No button press, no operator touchpoint at the gage required.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The MC-D-PT22938 is designed for Starrett digital instruments that use the PT22938 SPC data cable, including:
Cable length recommendation: order 3.5″ for Starrett 721/723 calipers; order 6.5″ for Starrett 731/733 micrometers. Use the MobileCollect Selection Tool to verify your specific model.
MicroRidge also offers the PT22938 cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — Starrett PT22938 — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-PT22938-3.5 | MC-D-PT22938-6.5 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 3.5 inches (Series 721/723 calipers) | 6.5 inches (Series 731/733 micrometers) |
SKU | MC-D-PT22938-3.5 (3.5″) | MC-D-PT22938-6.5 (6.5″) |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | Yes |
IP Rating | N/A |
Gage Brand | Starrett |
