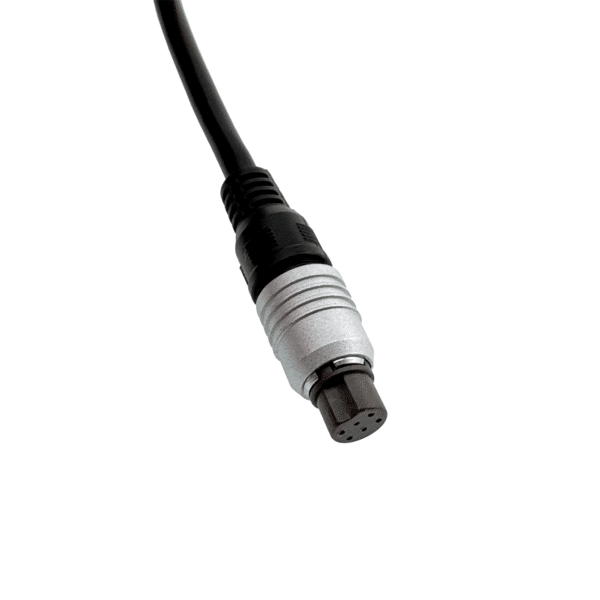

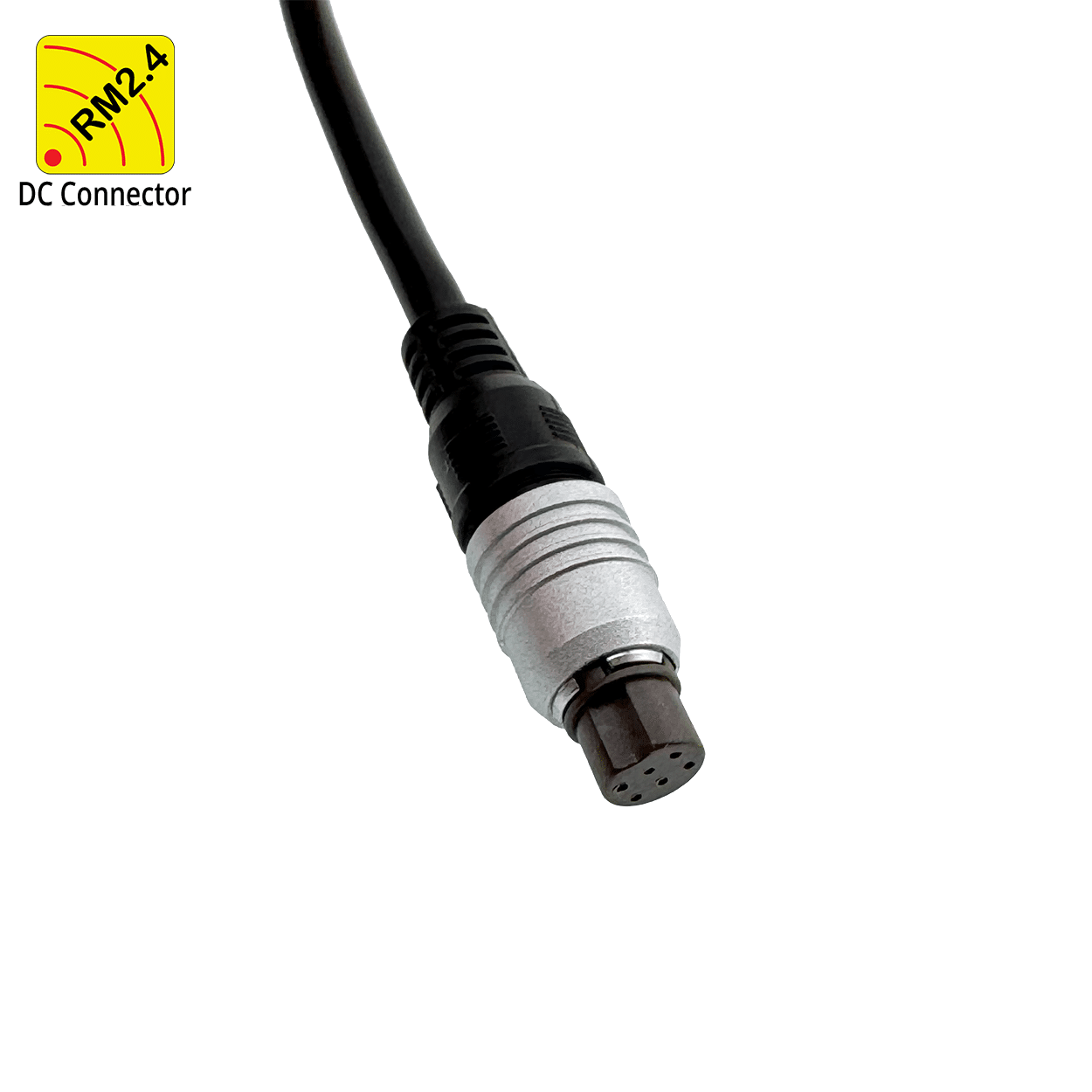

Command Mobile Module connector for older Mitutoyo micrometers and legacy Mitutoyo instruments that use the round 937387 2×3 gage cable. Enables automated, bi-directional wireless gage data collection on legacy equipment — readings are triggered remotely from the MobileCollect Base Receiver or your SPC software, extending the useful life of existing instruments into automated inspection systems.
Transmitter Family – Command Mobile Module (DC)
Standard Cable Length – 6.5″
SKU – MC-D-937387-6.5
Required Hardware – Command Mobile Module (DC) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$138.00
The DC Wireless Connector for Mitutoyo 937387 gages is the hardware link between your older Mitutoyo micrometer or legacy Mitutoyo instrument and the MobileCollect Wireless automated measurement collection system. Unlike the Mini Mobile Module EVO (M3E), the Command Mobile Module enables bi-directional wireless communication — readings are commanded remotely by the MobileCollect Base or your SPC software. No button press, no operator touchpoint at the gage required.
For operations running legacy Mitutoyo instruments alongside modern equipment, the Command Mobile Module enables those older gages to participate in a fully automated, networked measurement data collection system — without replacement.
With the Command Mobile Module, the read cycle is controlled upstream. Read commands are issued by your SPC software via serial output to the Base Receiver, or triggered by a foot switch, hand switch, or wireless remote switch connected to the Base. The Base transmits the request wirelessly to the Command Mobile Module, which triggers the gage and immediately returns the measurement data — all without any operator action at the gage.
This architecture eliminates the human touchpoint in the measurement loop, directly reducing transcription error risk and supporting tighter SPC control limits. The Base can also request single or multiple readings per command cycle and issue sleep commands to extend battery life — all configurable from your host PC or application.
The 937387 round 2×3 connector is found on older-generation Mitutoyo Digimatic micrometers and other legacy instruments. Many shops still rely on these proven gages — and there’s no reason to replace them just to gain wireless data collection capability. This DC connector brings your existing legacy Mitutoyo instruments into a modern automated measurement workflow without replacing the gages themselves. With the Command Mobile Module, those legacy instruments respond to remote read commands from your SPC software or a read switch at the operator station — the same automated data collection capability available on current-generation equipment, retrofitted onto gages that have been on the floor for decades.
Not sure if your indicator uses the 937387 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 937387 cable/connector for other systems in the MobileCollect and GageWay product families:
M3 Connector — Mitutoyo 937387 — For the Mini Mobile Module EVO (M3E). The M3E is the compact transmitter for applications that only require operator-initiated reads at the gage. One-way wireless communication; smaller form factor than the DC.
OEM SPC Cable — Mitutoyo 937387 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
The Command Mobile Module (DC) supports both automated, remotely commanded reads and manual operator-initiated reads via its built-in read button — so it can do everything the M3E does, plus remote automation. The tradeoff is form factor: the DC is larger than the M3E to accommodate the higher-capacity battery required to sustain remote-triggered read cycles. If your application only requires operator-initiated reads at the gage and a compact transmitter profile is a priority, the Mini Mobile Module EVO (M3E) is the right transmitter for that use case.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the automated wireless link, pair this connector with a Command Mobile Module transmitter (MC-MM-DC) and a MobileCollect Base Receiver.
MC-D-937387-6.5 Specs | |
|---|---|
Transmitter Family | Command Mobile Module (DC) |
Standard Cable Length | 6.5 inches |
SKU | MC-D-937387-6.5 |
Required Hardware | Command Mobile Module (DC) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Mitutoyo |
