The Kroeplin 22806-MIT is the SPC interface cable and adapter kit for Kroeplin gages — connecting via the gage’s SPC output port through an interface adapter that converts the Kroeplin signal to Mitutoyo Digimatic compatible format. Connects to any GageWay wired interface or MobileCollect Digital Remote for wired SPC data collection. Available in 1-meter length.
This product includes both the cable and interface adapter. A compatible gage interface is also required — this cable does not connect directly to a PC. — See our gage interface guide
Interface Connection – Mitutoyo Digimatic 10-pin (Type D)
Gage Connector – Kroeplin 22806-MIT
Standard Cable Length – 1 meter | Need more? The G-EXT extension cable adds 8 ft of in-line length between this cable and your interface.
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote
Read Button – No (readings triggered by interface, foot switch, or hand switch)
IP Rating – N/A
Gage Brand – Kroeplin
$253.00

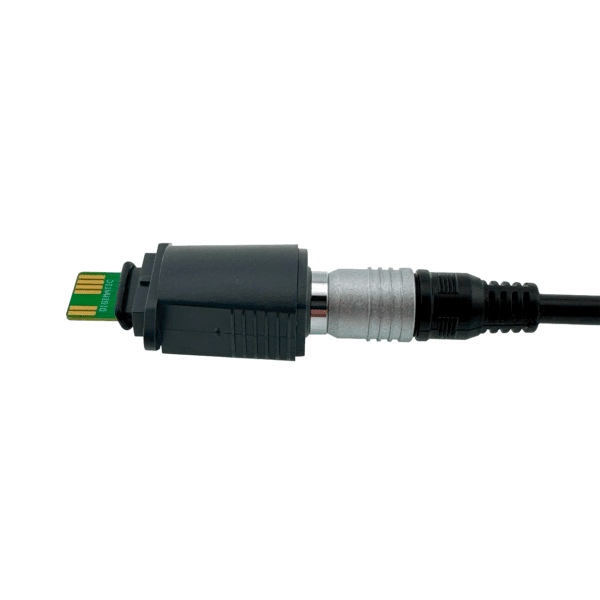

The 22806-MIT is the SPC interface cable and adapter kit for Kroeplin gages. Unlike most gage cables that plug directly into a standard Digimatic input, the Kroeplin connection requires both a gage cable and an interface adapter — the adapter converts the Kroeplin gage output to Mitutoyo Digimatic compatible format, which is then passed through the cable to any GageWay wired interface or MobileCollect Digital Remote for automated SPC data collection.
This product ships as a complete kit and includes both the gage cable and the interface adapter. If you need a replacement cable or adapter individually rather than the full kit, contact us at sales@microridge.com.
This is not a standalone product. The 22806-MIT cable terminates at a gage interface — a GageWay or Digital Remote sits between the cable and your computer and is required to pass data to any SPC software or collection application. If you’re not sure which interface fits your setup, the two most common configurations are detailed below.
The 22806-MIT is compatible with Kroeplin precision gages equipped with an SPC data output port. Kroeplin instruments commonly connected via this cable include bore gages, snap gages, and inside measuring instruments in Kroeplin’s digital gage product line.
Not sure if your specific Kroeplin gage is compatible? Contact us at sales@microridge.com before ordering — we’ll confirm compatibility for your specific model.
The 22806-MIT cable is the standard connection cable for the full GageWay wired interface product line. GageWay interfaces support the Mitutoyo Digimatic output natively — no baud rate configuration or communication parameters required. Plug the 22806-MIT into the gage input port on your GageWay, connect the interface to your PC via USB, and the gage is online.
GageWay Pro2, Pro4, Pro8 — Multi-channel interfaces supporting 2, 4, or 8 gages simultaneously via a single USB connection. Both USB keyboard wedge and USB serial outputs are built in. The Pro series includes configurable read switch ports, data parsing, TIR measurement modes, and AutoBaud detection for RS-232 devices. Best fit for fixed inspection stations, multi-gage measurement cells, and control plan implementations under ISO 9001, IATF 16949, or AS9100D where measurement traceability and process integration requirements are defined.
GageWay SM — Single-gage interface with USB serial output. Outputs to any SPC application monitoring a COM port. Pre-configured for Mitutoyo Digimatic gages — plug-and-play with no parameter setup.
GageWay KW — Single-gage interface with keyboard wedge output. Sends measurement data as keystrokes into Excel, cloud-based SPC platforms, or any application that accepts keyboard input.
Note: The 22806-MIT is available in 1-meter length only. If you need a replacement interface adapter or gage cable individually, contact us at sales@microridge.com.
The 22806-MIT is also compatible with the MobileCollect Digital Remote for installations where the gage is stationary and wired into a MobileCollect system rather than a standalone GageWay interface. The Digital Remote provides two-way Digimatic communication — it can receive measurement data from the gage and initiate readings remotely, similar in function to the Command Mobile Module but over a wired connection.
This configuration is most applicable for fixed measurement stations integrated into a larger MobileCollect Wireless network, where the gage itself doesn’t move but the data still needs to route through the MobileCollect infrastructure. For the majority of single-station or multi-station wired setups, a GageWay interface is the more direct and cost-effective path.
If your measurement application is better served by wireless SPC data collection, MicroRidge offers wireless connector alternatives for the Kroeplin Gages gage family — replacing the wired cable with a wireless transmitter connector:
M3 Connector — Kroeplin 22806-MIT — For the Mini Mobile Module EVO (M3E) wireless transmitter. Readings are triggered from the transmitter body. Best for handheld or portable gages used across multiple measurement points.
DC Connector — Kroeplin 22806-MIT — For the Command Mobile Module (DC) wireless transmitter. Supports simultaneous multi-gage triggering from the MobileCollect Base or SPC software — common in large fixtures or multi-point inspection setups.
22806-MIT Specs | |
|---|---|
Interface Connection | Mitutoyo Digimatic 10-pin (Type D) |
Gage Connector | Kroeplin 22806-MIT |
Standard Cable Length | 1 meter |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
Read Button | No (readings triggered by interface, foot switch, or hand switch) |
IP Rating | N/A |
Gage Brand | Kroeplin |
