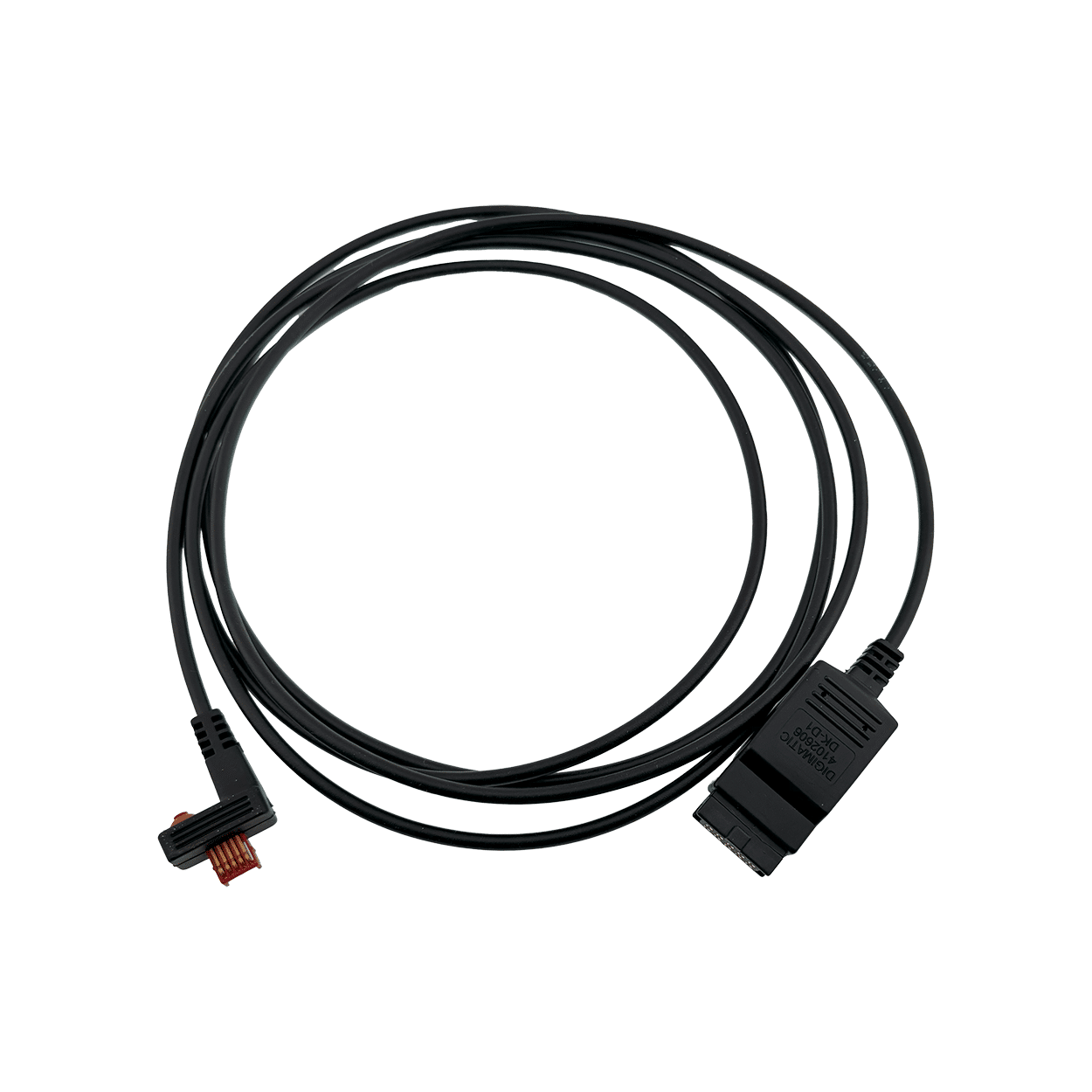

The Mahr 4102606 is the MarConnect DK-D1 Digimatic SPC data cable with built-in data send button for Mahr Federal indicators and gages equipped with the MarConnect interface — available in 2-meter length. Outputs in Mitutoyo Digimatic format, making it directly compatible with any GageWay wired interface or MobileCollect Digital Remote for wired SPC data collection.
A compatible gage interface is required — this cable does not connect directly to a PC. — See our gage interface guide

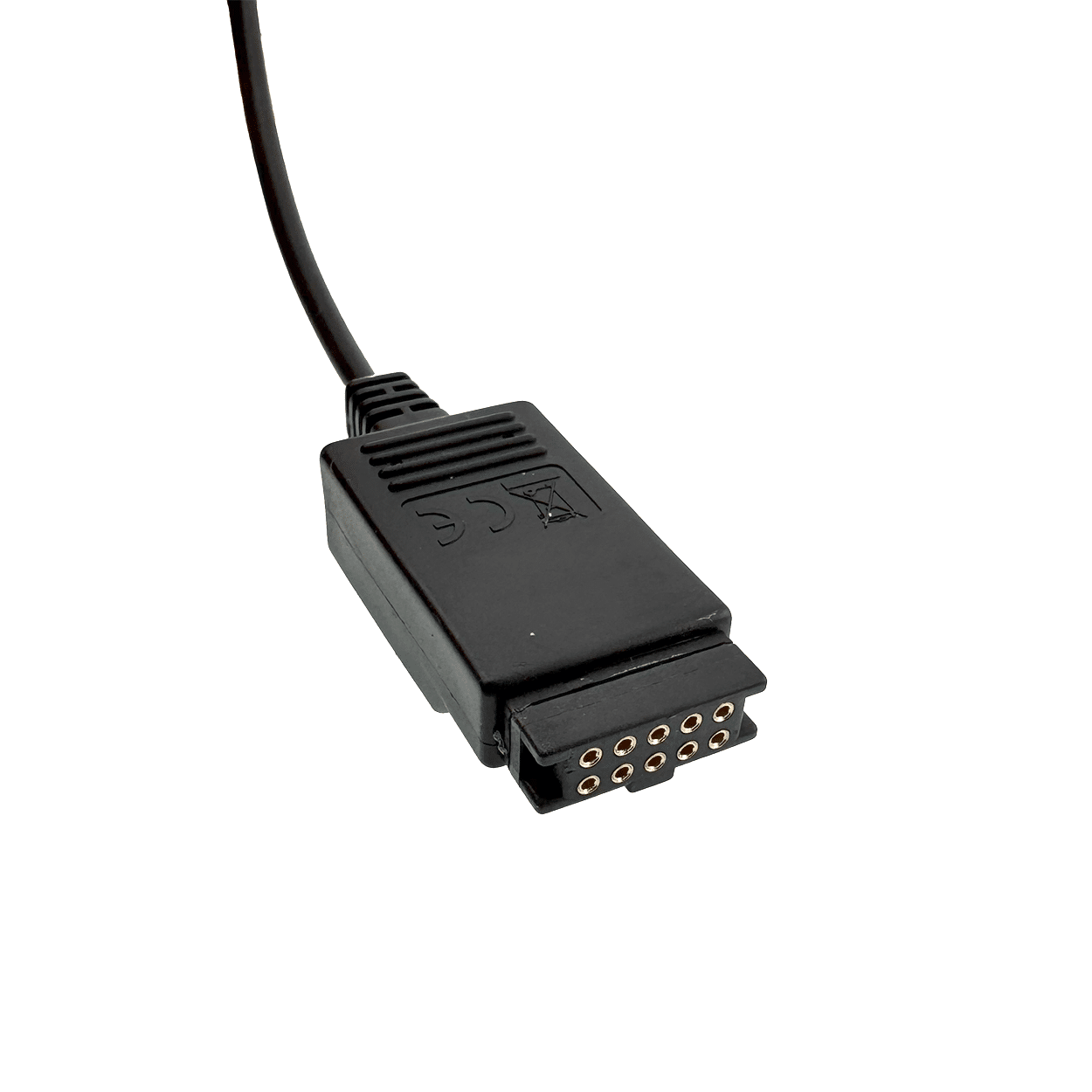

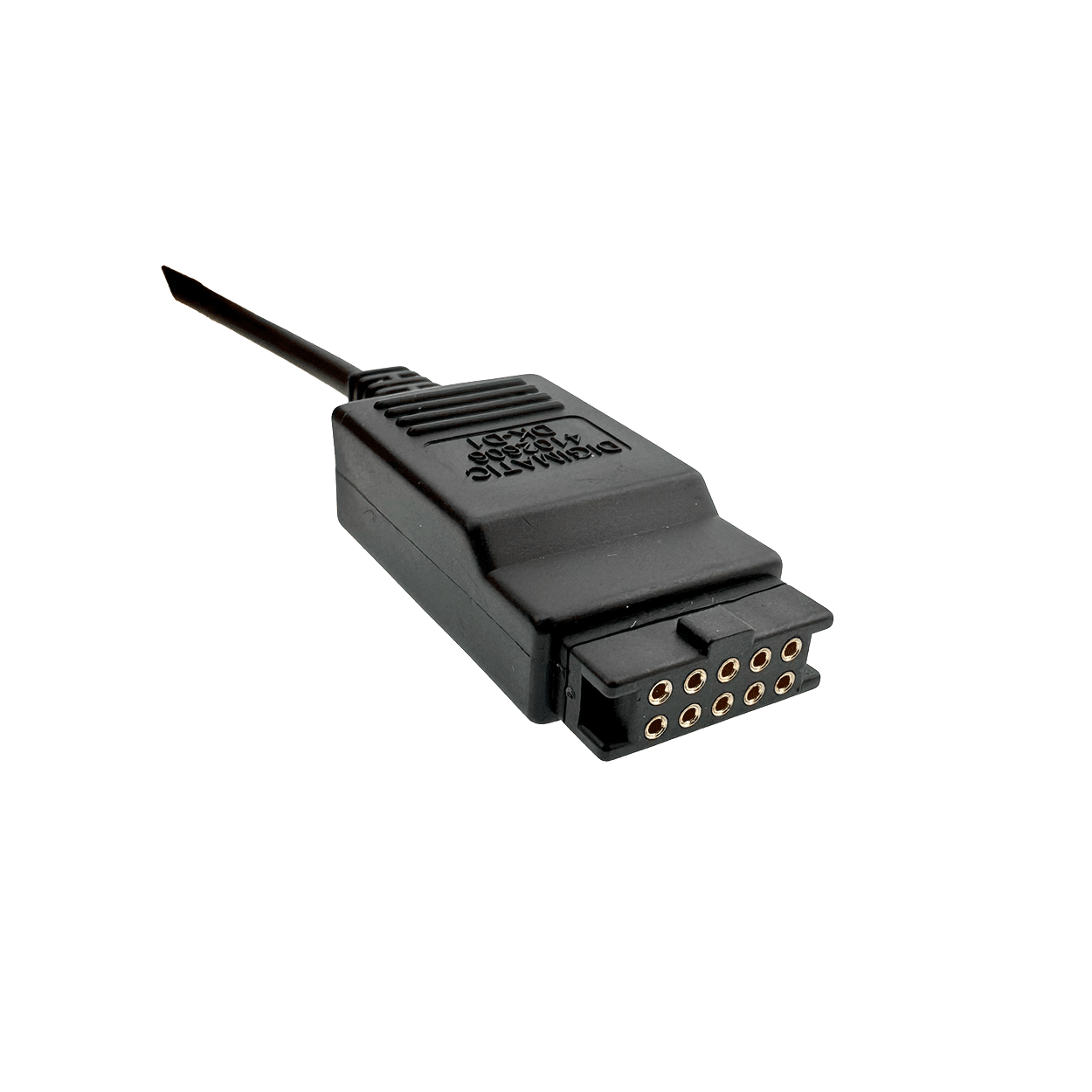

Interface Connection – Mitutoyo Digimatic 10-pin (Type D)

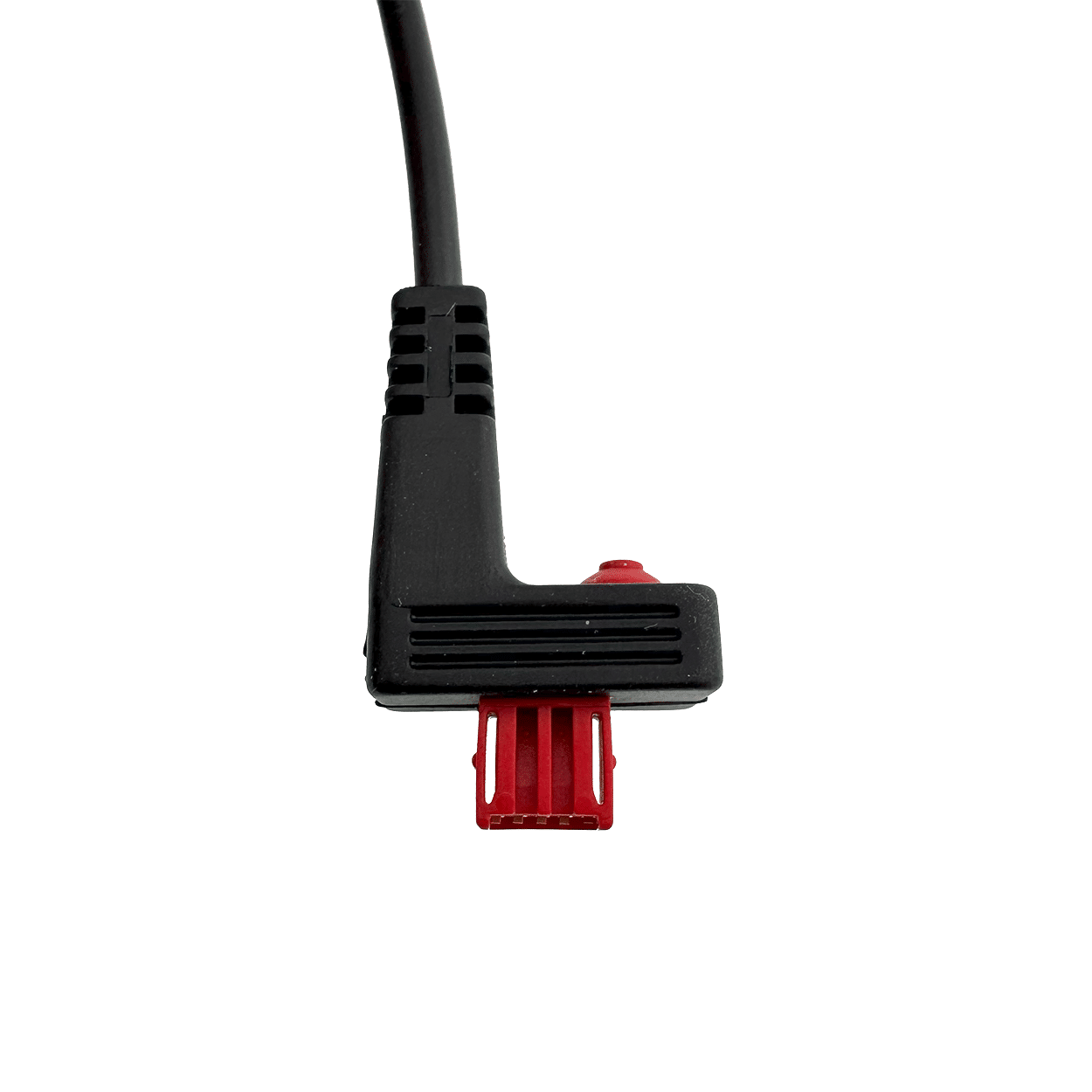

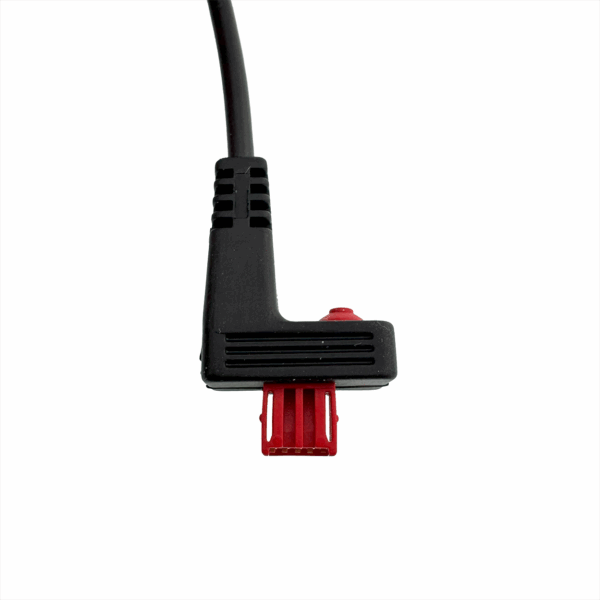

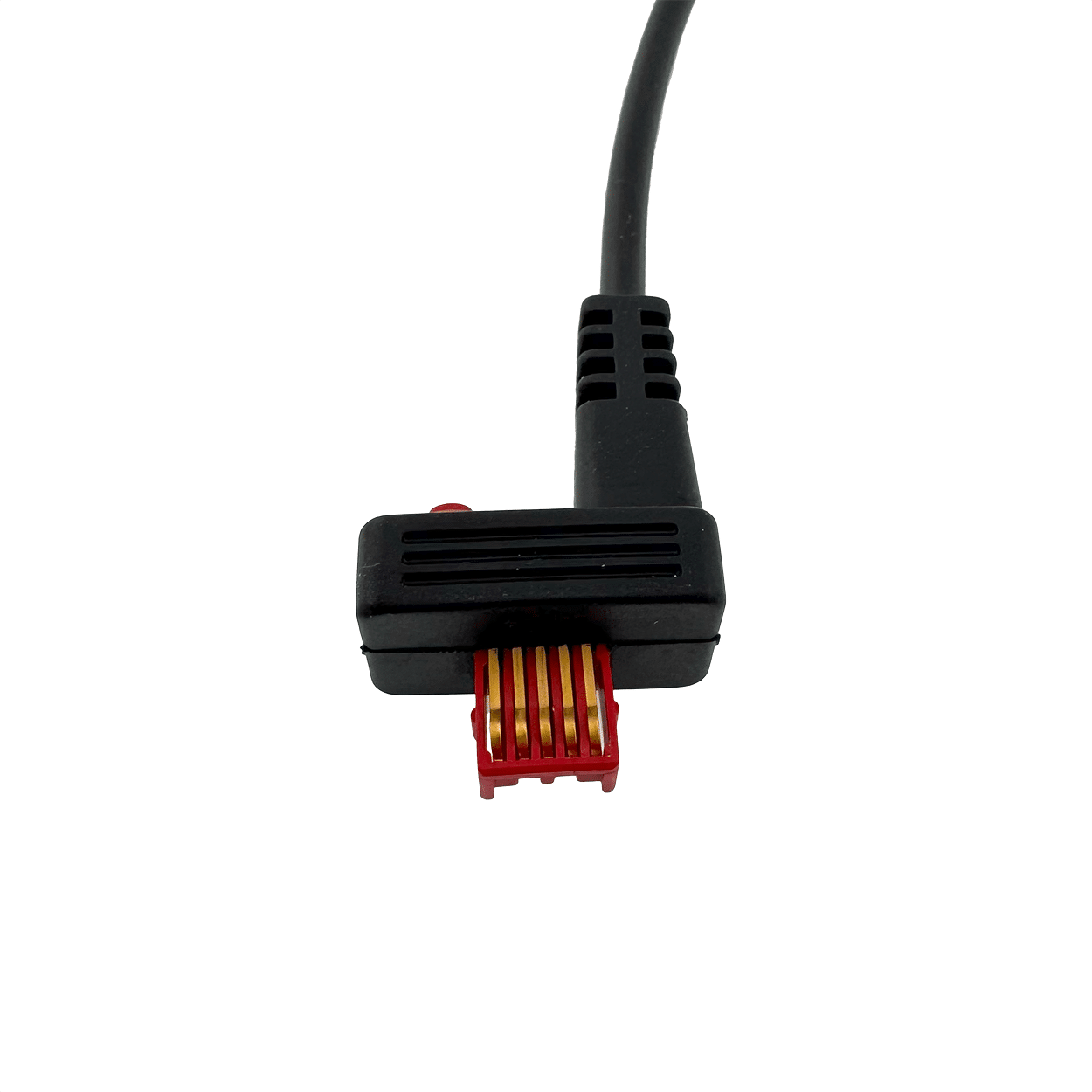

Gage Connector – MarConnect DK-D1
Standard Cable Length – 2 meter | Need more? The G-EXT extension cable adds 8 ft of in-line length between this cable and your interface.
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote

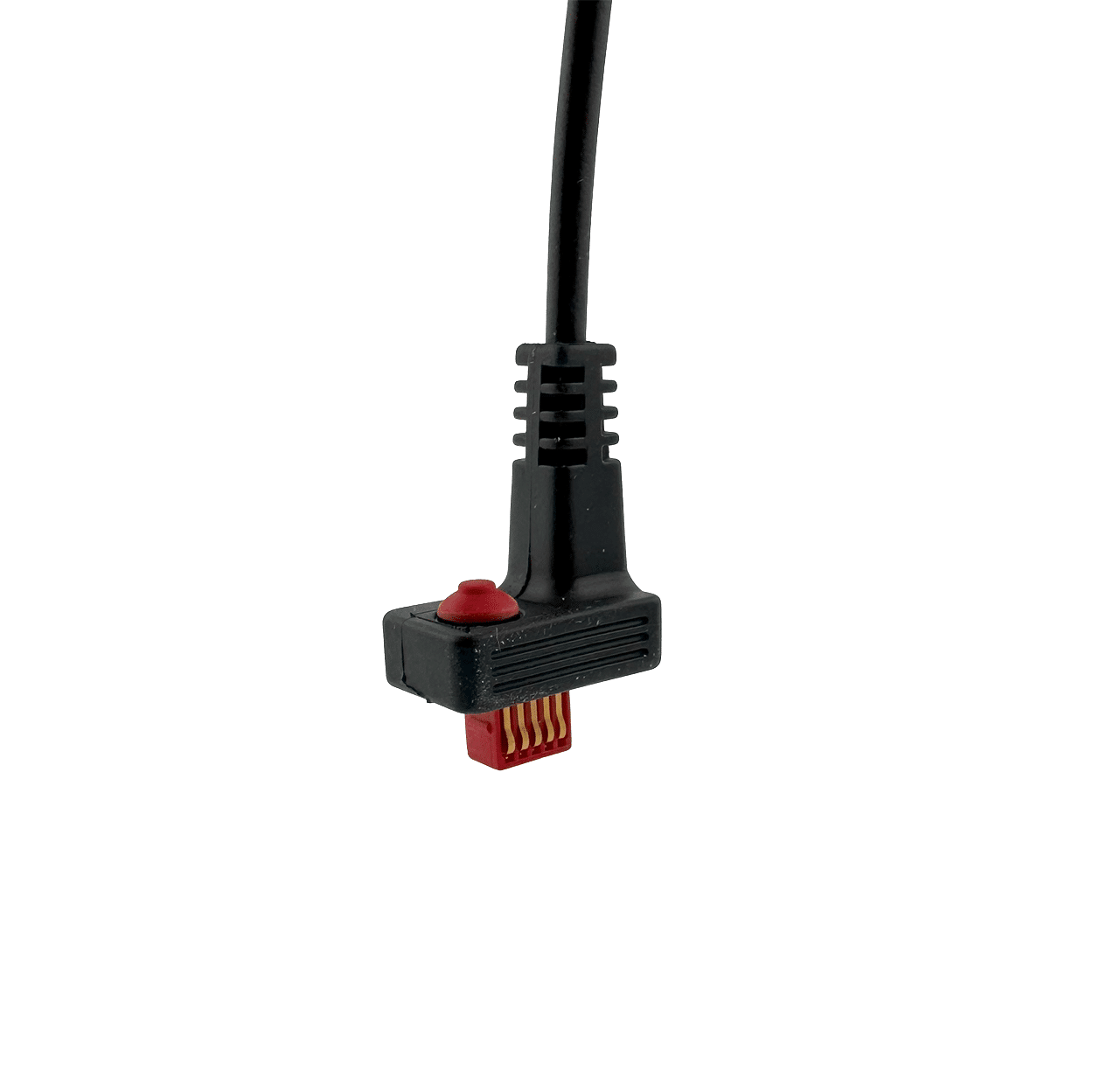

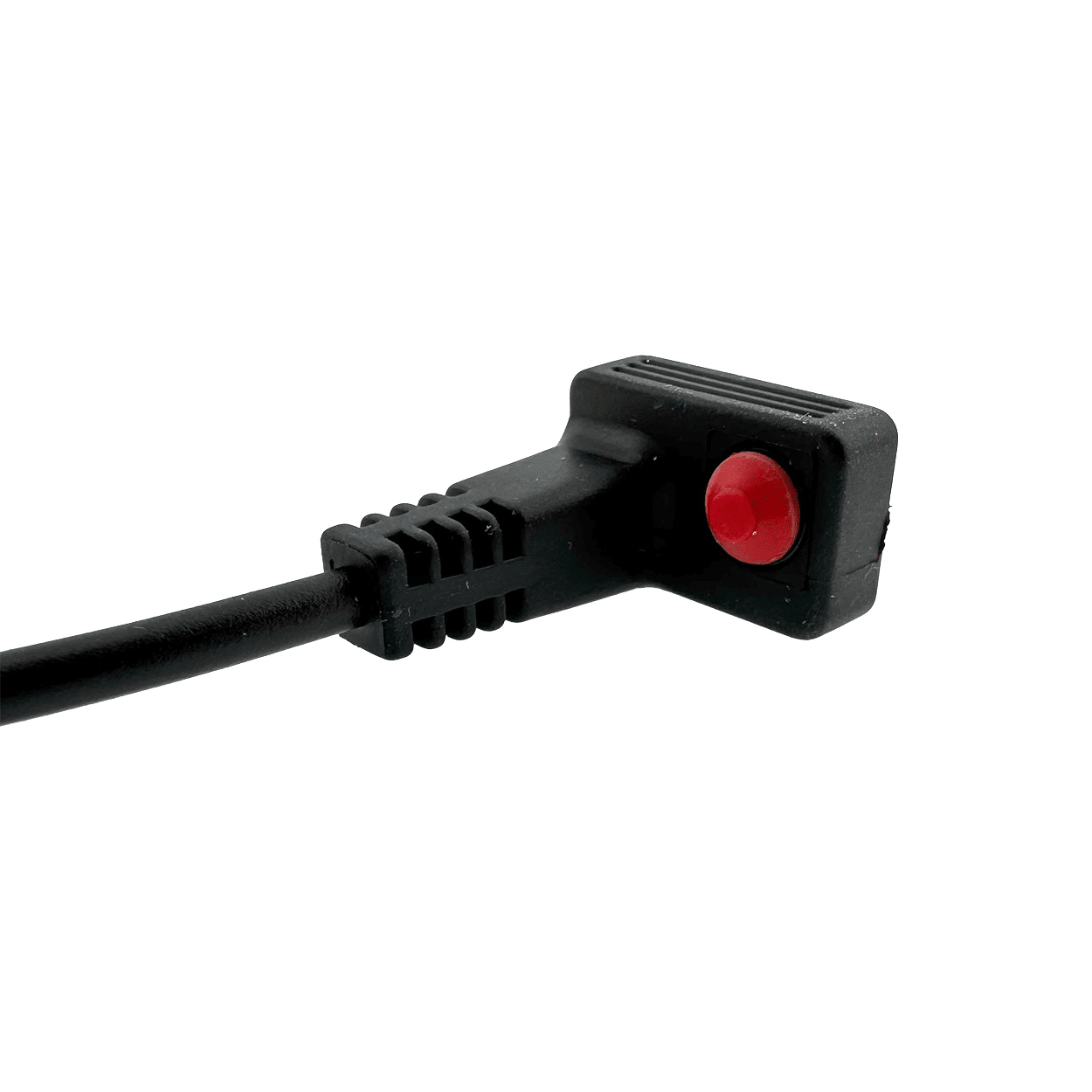

Read Button – Yes
IP Rating – N/A
Gage Brand – Mahr Federal
$249.00
The Mahr 4102606 is Mahr’s MarConnect DK-D1 Digimatic data cable — an accessory for Mahr Federal indicators and gages equipped with the MarConnect interface port. It converts the gage’s MarConnect output to Mitutoyo Digimatic format, allowing direct connection to any GageWay wired interface or MobileCollect Digital Remote for automated SPC data collection. The built-in data send button lets operators trigger readings at the point of measurement without returning to the interface or computer.
This is not a standalone product. The 4102606 cable terminates at a gage interface — a GageWay or Digital Remote sits between the cable and your computer and is required to pass data to any SPC software or collection application.
The 4102606 is compatible with Mahr Federal instruments equipped with the MarConnect interface port, including:
Not sure if your gage uses the MarConnect DK-D1 interface? Contact us at sales@microridge.com or check your gage’s documentation for the MarConnect port type.
The 4102606 cable is the standard connection cable for the full GageWay wired interface product line. GageWay interfaces support the Mitutoyo Digimatic output natively — no baud rate configuration or communication parameters required. Plug the 4102606 into the gage input port on your GageWay, connect the interface to your PC via USB, and the gage is online.
GageWay Pro2, Pro4, Pro8 — Multi-channel interfaces supporting 2, 4, or 8 gages simultaneously via a single USB connection. Both USB keyboard wedge and USB serial outputs are built in. The Pro series includes configurable read switch ports, data parsing, TIR measurement modes, and AutoBaud detection for RS-232 devices. Best fit for fixed inspection stations, multi-gage measurement cells, and control plan implementations under ISO 9001, IATF 16949, or AS9100D where measurement traceability and process integration requirements are defined.
GageWay SM — Single-gage interface with USB serial output. Outputs to any SPC application monitoring a COM port. Pre-configured for Mitutoyo Digimatic gages — plug-and-play with no parameter setup.
GageWay KW — Single-gage interface with keyboard wedge output. Sends measurement data as keystrokes into Excel, cloud-based SPC platforms, or any application that accepts keyboard input.
Note: The 4102606 is available in 2-meter length only.
The 4102606 is also compatible with the MobileCollect Digital Remote for installations where the gage is stationary and wired into a MobileCollect system rather than a standalone GageWay interface. The Digital Remote provides two-way Digimatic communication — it can receive measurement data from the gage and initiate readings remotely, similar in function to the Command Mobile Module but over a wired connection.
This configuration is most applicable for fixed measurement stations integrated into a larger MobileCollect Wireless network, where the gage itself doesn’t move but the data still needs to route through the MobileCollect infrastructure. For the majority of single-station or multi-station wired setups, a GageWay interface is the more direct and cost-effective path.
4102606 Specs | |
|---|---|
Interface Connection | Mitutoyo Digimatic 10-pin (Type D) |
Gage Connector | MarConnect DK-D1 |
Standard Cable Length | 2 meter |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
Read Button | Yes |
IP Rating | N/A |
Gage Brand | Mahr Federal |
