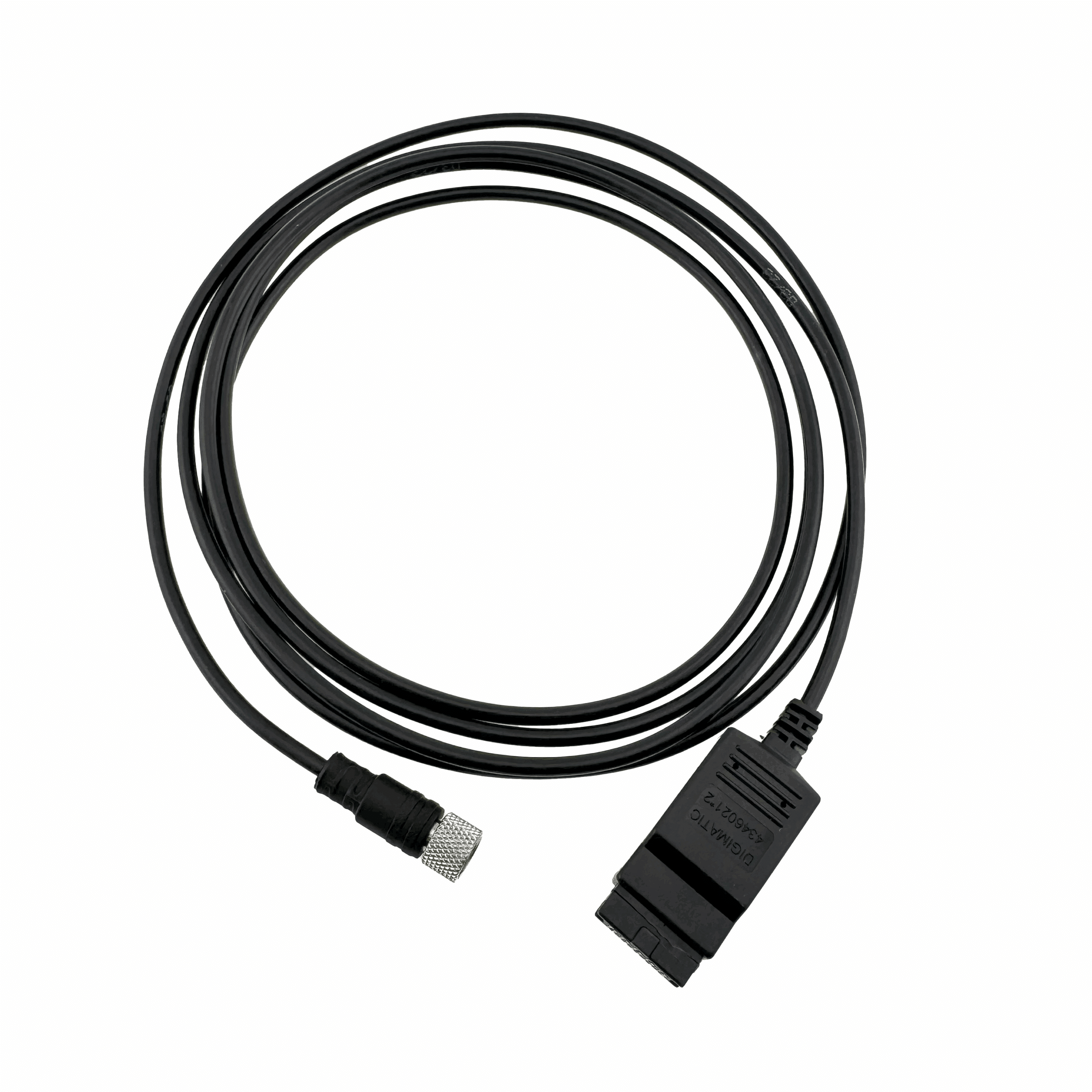

The Mahr Federal 4346021 is the Digimatic SPC data cable for Mahr Federal height gages, indicators, comparators, and other instruments equipped with the 4-pin female SPC output — available in 1-meter length. Outputs in Mitutoyo Digimatic format, making it directly compatible with any GageWay wired interface or MobileCollect Digital Remote for wired SPC data collection.
A compatible gage interface is required — this cable does not connect directly to a PC. — See our gage interface guide

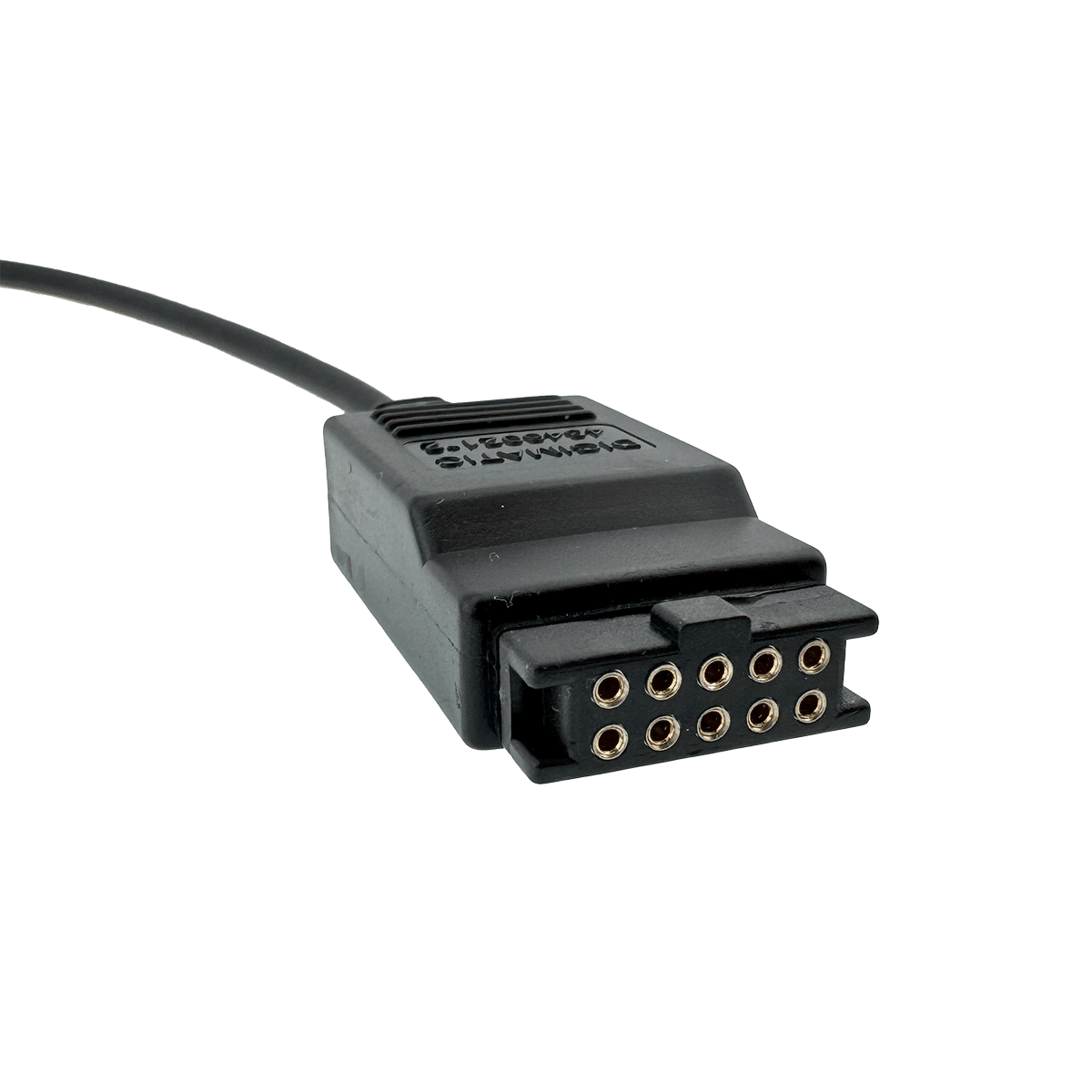

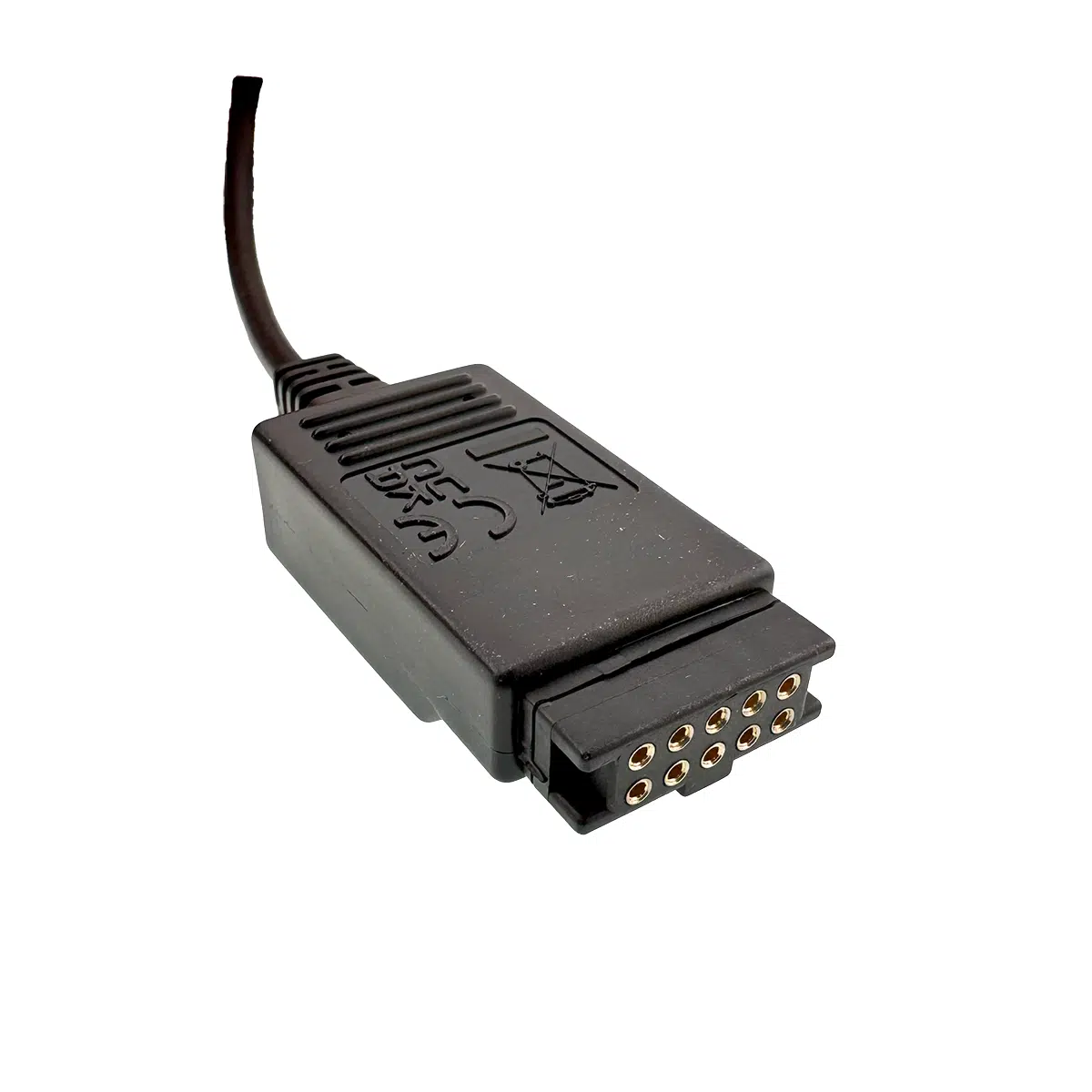

Interface Connection – Mitutoyo Digimatic 10-pin (Type D)
Gage Connector – 4-pin female
Standard Cable Length – 1 meter | Need more? The G-EXT extension cable adds 8 ft of in-line length between this cable and your interface.
Compatible Interfaces – GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote
Read Button – No (readings triggered by interface, foot switch, or hand switch)
IP Rating – N/A
Gage Brand – Mahr Federal
$189.50
The Mahr Federal 4346021 is Mahr Federal’s Digimatic SPC data cable for a broad range of instruments equipped with the 4-pin female SPC output port — available as an accessory for Digimar height gages, MarCator indicators, Millimess comparators, and µMaxum II gages. It outputs in Mitutoyo Digimatic format, allowing direct connection to any GageWay wired interface or MobileCollect Digital Remote for automated SPC data collection.
This is not a standalone product. The 4346021 cable terminates at a gage interface — a GageWay or Digital Remote sits between the cable and your computer and is required to pass data to any SPC software or collection application. If you’re not sure which interface fits your setup, the two most common configurations are detailed below.
The 4346021 is compatible with Mahr Federal instruments that use the 4-pin female SPC output port, including but not limited to:
Not sure if your gage uses the 4-pin female connector? Contact us at sales@microridge.com or check your gage’s documentation for the SPC output port type.
The 4346021 cable is the standard connection cable for the full GageWay wired interface product line. GageWay interfaces support the Mitutoyo Digimatic output natively — no baud rate configuration or communication parameters required. Plug the 4346021 into the gage input port on your GageWay, connect the interface to your PC via USB, and the gage is online.
GageWay Pro2, Pro4, Pro8 — Multi-channel interfaces supporting 2, 4, or 8 gages simultaneously via a single USB connection. Both USB keyboard wedge and USB serial outputs are built in. The Pro series includes configurable read switch ports, data parsing, TIR measurement modes, and AutoBaud detection for RS-232 devices. Best fit for fixed inspection stations, multi-gage measurement cells, and control plan implementations under ISO 9001, IATF 16949, or AS9100D where measurement traceability and process integration requirements are defined.
GageWay SM — Single-gage interface with USB serial output. Outputs to any SPC application monitoring a COM port. Pre-configured for Mitutoyo Digimatic gages — plug-and-play with no parameter setup.
GageWay KW — Single-gage interface with keyboard wedge output. Sends measurement data as keystrokes into Excel, cloud-based SPC platforms, or any application that accepts keyboard input.
Note: The 4346021 is available in 1-meter length only.
The original Mahr Federal µMaxum uses a 7-pin connector — not the 4-pin female used by the µMaxum II and the other gage families on this page. The 4346021 will not connect to the original µMaxum. If you have an original µMaxum, contact us at sales@microridge.com to confirm the correct cable for your instrument.
The 4346021 is also compatible with the MobileCollect Digital Remote for installations where the gage is stationary and wired into a MobileCollect system rather than a standalone GageWay interface. The Digital Remote provides two-way Digimatic communication — it can receive measurement data from the gage and initiate readings remotely, similar in function to the Command Mobile Module but over a wired connection.
This configuration is most applicable for fixed measurement stations integrated into a larger MobileCollect Wireless network, where the gage itself doesn’t move but the data still needs to route through the MobileCollect infrastructure. For the majority of single-station or multi-station wired setups, a GageWay interface is the more direct and cost-effective path.
MicroRidge makes interface cables for multiple Mahr Federal digital indicator families — but they use different connectors, output formats, and compatible interfaces. They are not interchangeable:
The Maxum (this cable, G-FED-MAX) uses a 6-pin connector and outputs in Federal proprietary format — compatible with GageWay Pro only.
The Maxum E-2 (G-FEDMAXE2) uses a 10-pin connector and outputs in Federal proprietary format — also compatible with GageWay Pro only.
The µMaxum (G-FED-MCRO) uses a 7-pin male connector and outputs in Mitutoyo Digimatic compatible format — compatible with all GageWay interfaces and the Digital Remote.
The µMaxum II uses a 4-pin female connector and outputs in Mitutoyo Digimatic compatible format — compatible with all GageWay interfaces and the Digital Remote.
Verify your specific instrument model before ordering — connector type, pin count, and output format all differ across these families.
If your measurement application is better served by wireless SPC data collection, MicroRidge offers wireless connector alternatives for the same Mahr Federal 4346021 gage family — replacing the wired cable with a wireless transmitter connector:
M3 Connector — Mahr Federal 4346021 — For the Mini Mobile Module EVO (M3E) wireless transmitter. Readings are triggered from the transmitter body. Best for handheld or portable gages used across multiple measurement points.
DC Connector — Mahr Federal 4346021 — For the Command Mobile Module (DC) wireless transmitter. Supports simultaneous multi-gage triggering from the MobileCollect Base or SPC software — common in large fixtures or multi-point inspection setups.
4346021 Specs | |
|---|---|
Interface Connection | Mitutoyo Digimatic 10-pin (Type D) |
Gage Connector | 4-pin female |
Standard Cable Length | 1 meter |
Compatible Interfaces | GageWay SM, GageWay KW, GageWay Pro, MobileCollect Digital Remote |
Read Button | No (readings triggered by interface, foot switch, or hand switch) |
IP Rating | N/A |
Gage Brand | Mahr Federal |
