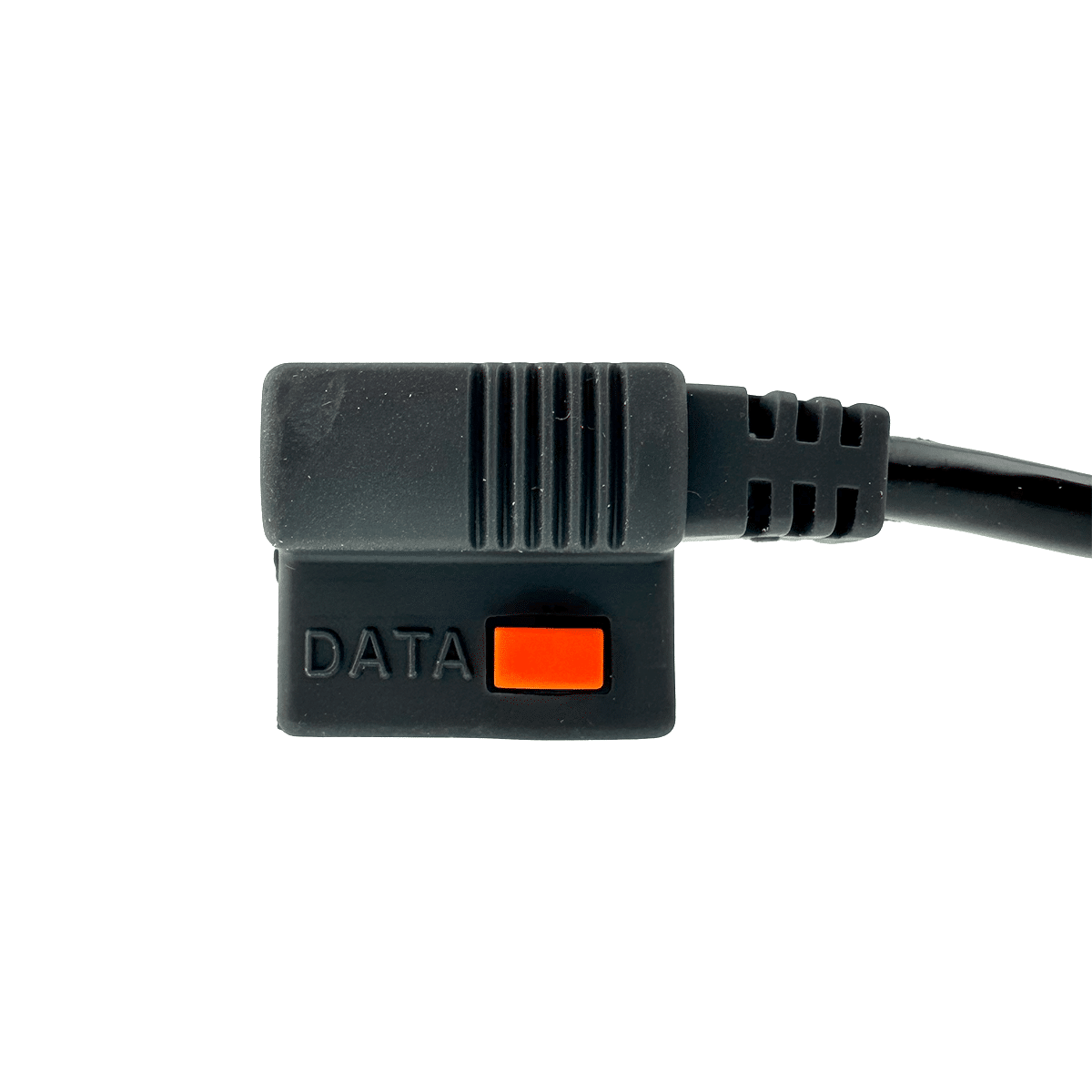

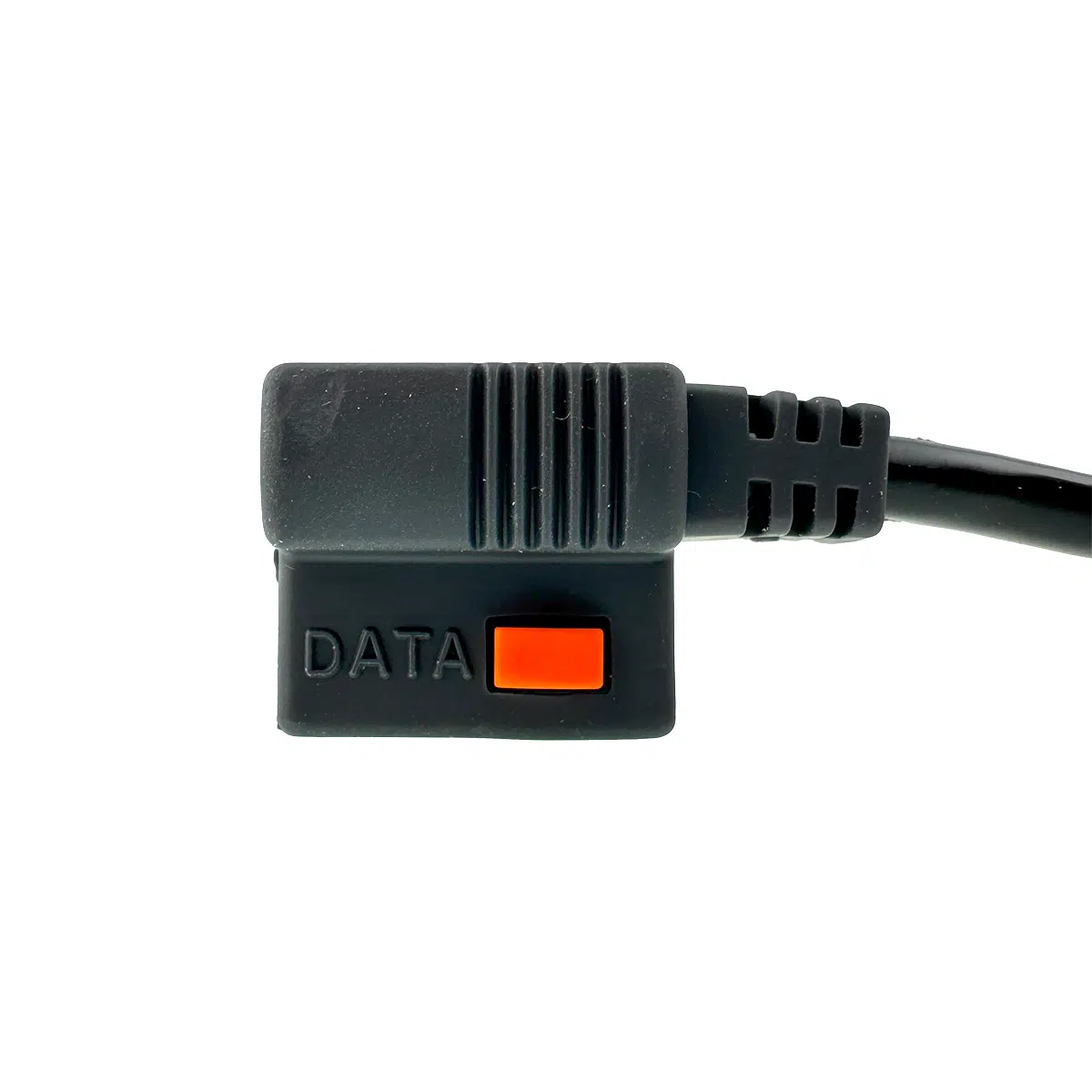

Wirelessly connect your Mitutoyo Digimatic caliper or indicator to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module EVO (M3E) connector for Mitutoyo gages that use the 04AZB512 SPC data cable — the right angle version of the 959149 straight connector. This connector is also commonly used on Mitutoyo indicators that would otherwise use the 905338 cable when a built-in data send button is needed. Pairs with the Mini Mobile Module EVO M3E transmitter to bring your gage online with MobileCollect.
Transmitter Family – Mini Mobile Module EVO (M3E)

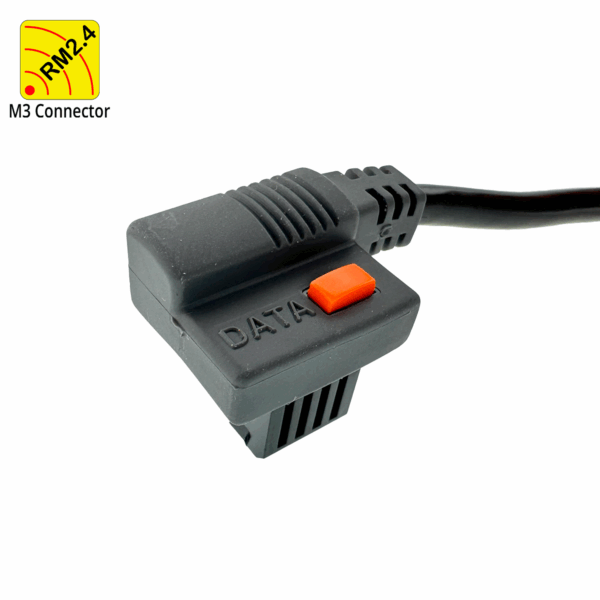

Connector Variant – M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters
Standard Cable Length – 6.5″
SKU – MC-M3-04AZB512-6.5
Required Hardware – Mini Mobile Module EVO (M3E) and MobileCollect Base
Read Button – Yes
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$193.00
The M3 Wireless Connector for Mitutoyo 04AZB512 gages is the link between your Mitutoyo Digimatic caliper or indicator and the MobileCollect Wireless measurement collection system. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.
This connector attaches directly to your gage’s Digimatic output port at a right angle and plugs into a Mini Mobile Module EVO (M3E) transmitter — together, they replace the standard Mitutoyo 04AZB512 SPC cable with a compact wireless setup. A built-in data send button lets operators trigger readings at the point of measurement, and each reading transmits wirelessly from the Mini Mobile Module EVO to a MobileCollect Base receiver connected to your PC or data collection workstation.
The 04AZB512 is the right angle version of the 959149 straight connector. Both cables connect to the same Mitutoyo Digimatic output — the difference is the physical orientation. Choose the right angle version (04AZB512) when a straight cable would interfere with fixturing, workholding, or operator access — particularly common with micrometer heads mounted in fixtures or calipers used in tight spaces.
This connector can also be used on Mitutoyo indicators that would normally use the 905338 cable. The 905338 does not include a data send button — so if your workflow requires a button on the cable to trigger readings at the gage, the 04AZB512 connector gives you that capability while still fitting the same Digimatic output port.
Not sure if your gage uses the 04AZB512 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 04AZB512 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Mitutoyo 04AZB512 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC Cable — Mitutoyo 04AZB512 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module EVO transmitter (MC-MM-M3-EVO) and a MobileCollect Base Receiver.
This is the M3 variant of this cable. It uses a 2×3, 6-pin connector that plugs into the Mini Mobile Module transmitter.
Transmitter compatibility: This M3 cable is fully compatible with both the current Mini Mobile Module EVO M3E transmitter and the retired M3 transmitter. No adapter, firmware change, or configuration required — it plugs directly into either.
This Cable Supports:
See the Mini Mobile Module EVO Connector Compatibility Guide for photos of all four connector and transmitter combinations, including how M3 and M3E cables seat on each transmitter generation.
This cable supports TriggerSync. TriggerSync is a measurement mode where a reading is triggered from the MobileCollect Base Receiver or directly from your SPC application, without a manual button press at the gage. TriggerSync will enable automated data collection across all of your digital gages. This feature is currently under development and scheduled for release in Q3 2026.
MC-M3-04AZB512-6.5 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module EVO (M3E) |
M3 Cable/Connector Variant | M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters |
Standard Cable Length | 6.5 inches |
SKU | MC-M3-04AZB512-6.5 |
Required Hardware | Mini Mobile Module EVO (M3E) & MobileCollect Base |
Read Button | Yes |
IP Rating | N/A |
Gage Brand | Mitutoyo |
