Wirelessly connect your Mitutoyo high-accuracy Digimatic indicator to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module EVO (M3E) connector for Mitutoyo indicators that use the 06AGL011 cable and communicate via the Digimatic D2 or D1 protocol. Pairs with the Mini Mobile Module EVO M3E transmitter to bring your gage online with MobileCollect.
This connector is for Mitutoyo’s updated ID-C and ID-F indicators introduced in 2023. If you have an older ID-C indicator that uses the 905338 cable, see the MC-M3-905338 connector instead.
Mini Mobile Module Firmware must be 5.35 or newer to support Digimatic D2.
Update Mini Mobile Module Firmware
Transmitter Family – Mini Mobile Module EVO (M3E)
Connector Variant – M3E (2×4, 8-Pin) — TriggerSync & GageSync Ready | Compatible with M3 and M3E Transmitters
Standard Cable Length – 6.5″
SKU – MC-M3E-06AGL011-6.5
Required Hardware – Mini Mobile Module EVO (M3E) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$162.00
The M3E Wireless Connector for Mitutoyo 06AGL011 gages is the link between your Mitutoyo high-accuracy Digimatic gage and the MobileCollect Wireless measurement collection system. This connector supports the Digimatic D2 communication protocol used on Mitutoyo’s latest generation of high-accuracy instruments. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.
This connector attaches directly to your gage’s Digimatic D2 output port and plugs into a Mini Mobile Module EVO (M3E) transmitter — together, they replace the standard Mitutoyo 06AGL011 SPC cable with a compact wireless setup. Each reading transmits wirelessly from the Mini Mobile Module to a MobileCollect Base receiver connected to your PC or data collection workstation.
Important: Mini Mobile Module firmware must be version 5.35 or newer to support the Digimatic D2 protocol. Update Mini Mobile Module Firmware
Mitutoyo’s D2 protocol is used on their newest generation of high-accuracy instruments, delivering higher resolution data than the original Digimatic standard. MicroRidge’s Mini Mobile Module supports D2 natively with firmware 5.35+, ensuring you capture the full precision of your measurement instrument through the wireless link.
Not sure if your gage uses the 06AGL011 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
In January 2023, Mitutoyo introduced an updated generation of ID-C and ID-F Digimatic indicators featuring a new S1 connector and the Digimatic D2 communication protocol. These new indicators — including the 543-70X, 543-71X, 543-72X, and 543-73X series — are not compatible with the legacy 905338 SPC cable or MC-M3-905338-6.5 connector that worked with previous ID-C models. If you’ve recently purchased a new Mitutoyo ID-C or ID-F indicator and your existing 905338 cable doesn’t fit, this is why. For a deeper explanation of what changed and why, read our complete guide to Mitutoyo’s SPC cable transitions.

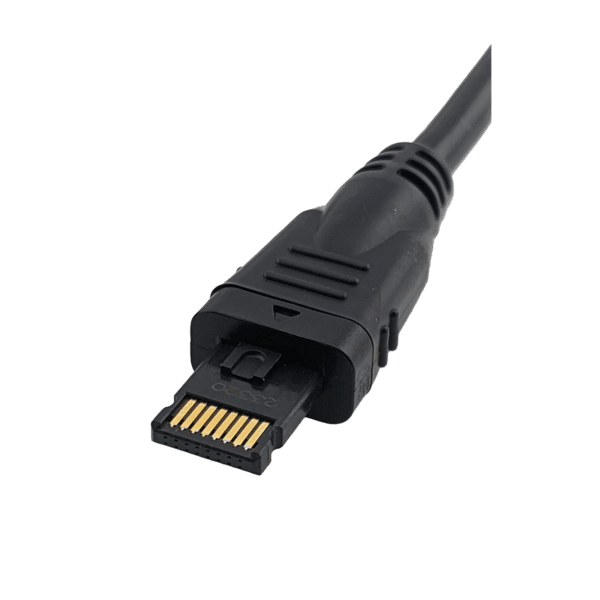

The new indicators require the 06AGL011 cable, which uses a different physical connector and supports the higher-resolution D2 data output. If you’re unsure which generation of indicator you have, the easiest way to tell is the connector on the gage itself — the older style accepts the bulkier 905338 plug, while the new S1 connector is visually thinner. Use the MobileCollect Selection Tool to confirm which connector your specific model requires.
MicroRidge also offers the 06AGL011 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Mitutoyo 06AGL011 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC Cable — Mitutoyo 06AGL011 — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module EVO transmitter (MC-MM-M3-EVO) and a MobileCollect Base Receiver.
This is the M3E variant of this cable. It uses a 2×4, 8-pin connector that plugs into the Mini Mobile Module transmitter.
Transmitter compatibility: This M3E cable is fully compatible with both the current Mini Mobile Module M3E transmitter and the retired M3 transmitter. No adapter, firmware change, or configuration required — it plugs directly into either.
This cable supports:
See the Mini Mobile Module EVO Connector Compatibility Guide for photos of all four connector and transmitter combinations, including how M3 and M3E cables seat on each transmitter generation.
This cable supports TriggerSync. TriggerSync is a measurement mode where a reading is triggered from the MobileCollect Base Receiver or directly from your SPC application, without a manual button press at the gage. TriggerSync will enable automated data collection across all your connected gages once released. This feature is currently under development and scheduled for release in Q3 2026.
The two additional pins on this M3E cable unlock GageSync — two-way communication between the transmitter and gage that allows the M3E transmitter to query the gage directly for metadata such as serial number, calibration date, and other gage-level attributes. Many gages paired with M3E cables support this two-way communication via the Mitutoyo Digimatic S1 protocol. For manufacturers operating under ISO 9001, IATF 16949, or AS9100 Rev D — where calibration traceability, measurement system traceability, and gage identification records are audit-critical requirements — GageSync enables your SPC software to capture gage serial number and calibration status as needed or automatically alongside every measurement reading, moving gage management from manual tracking toward automated, system-level control. GageSync is currently under development and scheduled for release in Q3 2026 — no hardware swap required at launch.
Interested in Early Access to GageSync? MicroRidge is accepting a limited number of manufacturers into the GageSync early access program ahead of the Q3 launch. If you’re running an M3E transmitter and want to be among the first to pull calibration dates, serial numbers, and gage metadata directly into your SPC workflow, contact us to apply.
MC-M3E-06AGL011-6.5 | |
|---|---|
Transmitter Family | Mini Mobile Module EVO (M3E) |
Connector Variant | M3E (2×4, 8-Pin) — TriggerSync & GageSync Ready | Compatible with M3 and M3E Transmitters |
Standard Cable Length | 6.5 inches |
SKU | MC-M3E-06AGL011-6.5 |
Required Hardware | Mini Mobile Module EVO (M3E) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Mitutoyo |
