Wirelessly connect your Fowler, Sylvac, or other gage that uses the Simplex Opto cable to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module EVO (M3E) connector for gages that utilize the Simplex Opto SPC cable. Several different gage manufacturers use this cable type. Pairs with the M3E transmitter to bring your gage online with MobileCollect.
Duplex or Simplex? This connector is not interchangeable with the Simplex Opto version — the Duplex Opto gage port uses a different pin assignment, so the wiring must match. If your gage uses the Duplex Opto interface, order the M3 Connector — Fowler/Sylvac Duplex Opto instead.
Transmitter Family – Mini Mobile Module EVO (M3E)
Connector Variant – M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters
Standard Cable Length – 3.5″ (recommended for calipers) | 6.5″ (recommended for all other gages)
SKU – MC-M3-54-115-333-3.5 (3.5″) | MC-M3-54-115-333-6.5 (6.5″)
Required Hardware – Mini Mobile Module EVO (M3E) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – Fowler Sylvac
$175.00 – $263.00Price range: $175.00 through $263.00
The M3 Wireless Connector for Simplex Opto gages is the link between your Fowler, Sylvac, or other Simplex Opto-equipped instrument and the MobileCollect Wireless measurement collection system. Once connected, measurement data transmits wirelessly from the gage to your SPC software — no manual data entry, no transcription errors, no clipboard in between.

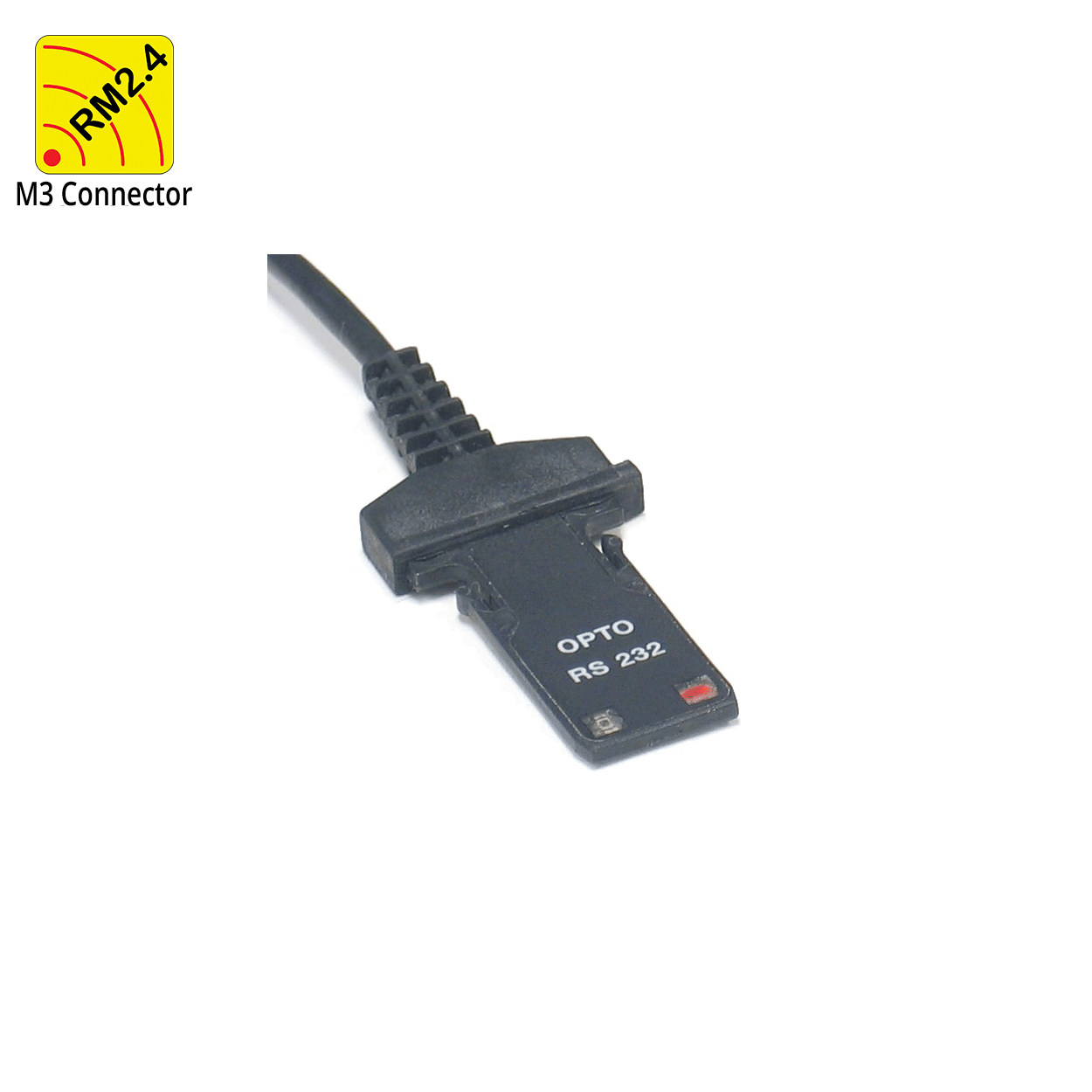

This connector attaches directly to your gage’s Simplex Opto data output port and plugs into a Mini Mobile Module EVO (M3E) transmitter — together, they replace a standard wired Simplex Opto SPC cable with a compact wireless setup. Each reading transmits wirelessly from the Mini Mobile Module EVO to a MobileCollect Base receiver connected to your PC or data collection workstation.
The Simplex Opto cable interface is used across several gage manufacturers, not just Fowler and Sylvac. If your gage uses the Simplex Opto connection — regardless of the brand — this connector will work. Available in two lengths: 3.5″ (recommended for calipers) and 6.5″ (recommended for all other gage types).
Not sure if your gage uses the Simplex Opto interface? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
MicroRidge also offers the 54-115-333 cable/connector for other systems in the MobileCollect and GageWay product families:
DC Connector — Fowler Sylvac Simplex 54-115-333 — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
OEM SPC RS-232 Cable — Fowler Sylvac Simplex 54-115-333  — For wired connections to the Digital Remote or GageWay interfaces. The Digital Remote provides two-way communication similar to the Command Mobile Module but over a wired connection — ideal for stationary measurement stations. Also compatible with all GageWay wired gage interfaces.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module EVO transmitter (MC-MM-M3-EVO) and a MobileCollect Base Receiver.
This is the M3 variant of this cable. It uses a 2×3, 6-pin connector that plugs into the Mini Mobile Module transmitter.
Transmitter compatibility: This M3 cable is fully compatible with both the current Mini Mobile Module EVO M3E transmitter and the retired M3 transmitter. No adapter, firmware change, or configuration required — it plugs directly into either.
This Cable Supports:
See the Mini Mobile Module EVO Connector Compatibility Guide for photos of all four connector and transmitter combinations, including how M3 and M3E cables seat on each transmitter generation.
This cable supports TriggerSync. TriggerSync is a measurement mode where a reading is triggered from the MobileCollect Base Receiver or directly from your SPC application, without a manual button press at the gage. TriggerSync will enable automated data collection across all of your digital gages.
MC-M3-54-115-333-3.5 | MC-M3-54-115-333-6.5 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module EVO (M3E) |
M3 Cable/Connector Variant | M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters |
Standard Cable Length | 3.5″ (recommended for calipers) | 6.5″ (recommended for all other gages) |
SKU | MC-M3-54-115-333-3.5 | MC-M3-54-115-333-6.5 |
Required Hardware | Mini Mobile Module EVO (M3E) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Fowler/Sylvac |
The M3 Connector - Fowler/Sylvac Simplex Opto connects 228 gage models from 12 manufacturers to the Mini Mobile Module EVO. Most of them are calipers, indicators and height gages. Every model below is matched to this part in the MicroRidge Measurement Collection System Builder.
Not sure which model you have? Search for it in the Measurement Collection System Builder, or identify it from a photo there.
Bore gages: Mark II, XT (not xtreme)
Depth gages: 54-137-008, 54-137-012, 54-138-012, 54-138-020, 54-275-065, 54-275-100, Depthmatic
Height gages: 54-050-025, 54-050-035, 54-105-012-0, 54-105-024-0, 54-105-040-0, 54-180-212-0, 54-180-215-0, 54-180-224-0, 54-180-226-0, Digital Ultra, MiniVertical Series II, Trimos TVM
Micrometers: 54-245-777, 54-245-780, 54-245-800, 54-245-825, S_Mike
Calipers: 54-100-012-0, 54-100-020-0, 54-100-040-0, 54-100-080-0, 54-100-212, 54-100-330, 54-100-340, 54-100-400, 54-100-412-0, 54-100-444-0, 54-100-448-0, 54-112-100-0, 54-112-300-0, 54-112-600-0, 54-200-777, 54-200-888, Euro-Cal III, Pro-Max, S_Cal, Ultra-Cal IV, Ultra Cal III
Indicators: 54-520-555, 54-520-600, 54-520-605, 54-520-610, 54-520-777, 54-520-790, 54-520-791, 54-520-792, 54-520-794, 54-520-875, 54-520-876, 54-520-888, 54-520-900, 54-520-905, Dialmatic, Series 213, Ultra-Digit Mark IV, Ultra-Digit Mark V, Ultra Digit Mini
Scales and balances: 54-050-004, 54-050-005, 54-050-013, 54-050-015, 54-998-108, 54-998-120, 54-998-124, 54-998-130, 54-998-140
Other gages: 54-110-312, 54-110-324, 54-110-340, 54-110-360, 54-150-012-0
Micrometers: 0932 701, 0932 702, 0932 703, 0932 704, 0932 705, 0932 706, 0932 707, 0932 708, 0932 731, 0932 732, 0932 733, 0932 734, 0933 701, 0933 702, 0933 703, 0933 704, 0933 705, 0933 706, 0933 707, 0933 708
Calipers: 0222-734, 0222-736, 0223-734, 0223-736, 0224-734, 0224-736, 0225-734, 0225-736, 0228-701, 1338-522, 1351-522, 1351-528, 1351-622, 1351-628
Depth gages: 17458, 18210, 18211, 18212, 18213, 18214, 18215, 18216, 18217, 18218, 18219
Height gages: 18220, 18221, 18223, 18224, 18225
Calipers: 18200, 18201, 18202, 18203, 18204, 18205, 18206, 18207, 18314-C, 18329, 19245
Indicators: 18318, 18319, 18515, 18516, 18530, 18531
Height gages: TESA Hite - Opto, TESA MicroHite - Opto
Micrometers: TESA Micromaster
Calipers: Interapid Light, TESA Cal IP65, TESA Cal IP67
Indicators: Digico 2xx, Digico 3xx, Digico 4xx, Digico 5xx, Digico 6xx, Digico 7xx, Digico 10, Digico 11
Other gages: TESA Alesometer, TESA lmicro, TESA Tronic TT20, TESA Tronic TT60, TESA Tronic TT80, TESA Tronic TT90, TT20, TT60, TT80
Height gages: TESA Hite - Opto, TESA MicroHite - Opto
Micrometers: TESA Micromaster
Calipers: Interapid Light, TESA Cal IP65, TESA Cal IP67
Indicators: Digico 2xx, Digico 3xx, Digico 4xx, Digico 5xx, Digico 6xx, Digico 7xx, Digico 10, Digico 11
Other gages: TESA Alesometer, TESA lmicro, TESA Tronic TT20, TESA Tronic TT60, TESA Tronic TT80, TESA Tronic TT90
Depth gages: 30 EWD (OPTO)
Height gages: 27 ES (OPTO), 4426540, 4426541, 4426542, 4426543, Digimar 814 X (OPTO), M814 (OPTO)
Calipers: 25 ES (OPTO)
Indicators: Millitast 1083 (OPTO), Millitast 1085 (OPTO)
Scales and balances: 31 ES (OPTO), 32 ES (OPTO)
Other gages: 106 ES (OPTO)
Bore gages: 781XT
Micrometers: 782
Calipers: 797B, 5000 series, 5001 series, 5002 series, 5004 series
Calipers: S_Cal UL Mark III, S_Cal UL Mark IV, S_Cal Work
Indicators: S_Dial 229
Other gages: PS16 VS, S239 Protractor
Depth gages: DI-0, DI-00, DI-000, DI-1, DI-2, DI-3
Other gages: Digi Gauge, Digi Speed, DMG
Bore gages: XT (not xtreme)
Depth gages: TD-Gauge-DIGITAL
