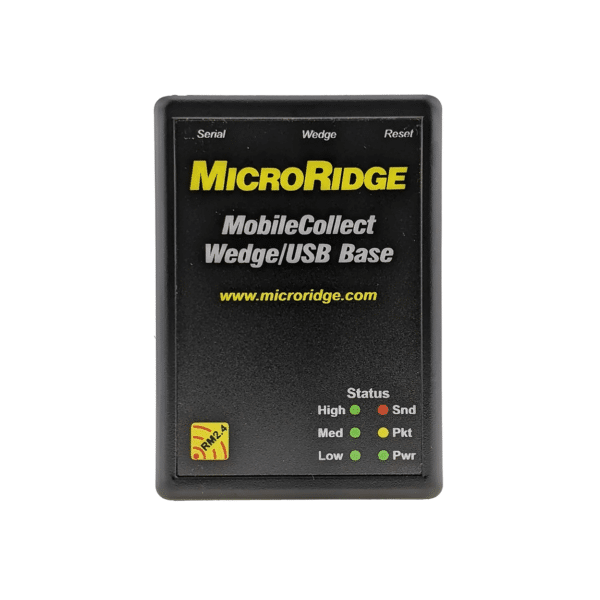

The Wedge/USB Base receives measurements from Mobile Modules and Remotes. This base output options include USB serial and USB keyboard wedge. The keyboard wedge option allows direct data transfer to applications such as Microsoft Excel, Access, Minitab, etc.

Key Features:

• Supports an unlimited number of Mobile Modules (transmitters) and Remotes (transmitters).
• Configured by the MobileCollect Xpress or Extended Setup programs.
• Field upgradeable firmware.
• Range is up to 133 feet.
• You can have several Bases adjacent to each other.  Each Base will only receive data from the Mobile Modules or Remotes that have been paired with the Base.
• Data sent to the PC consists of standard RS-232 data that is accepted by virtually all SPC-DAQ software.
• WedgeLink Xpress keyboard wedge and RF Sniffer included at no additional charge.

Keyboard Setup for Wedge/USB Base

Wedge/USB Base emulates the following keyboards

• English (United States, QWERTY)
• English (United Kingdom, QWERTY)
• French (Belgium, AZERTY)
• French (France, AZERTY)
• German (Germany, QWERTZ)
• Spanish (Mexico, QWERTY)

The default keyboard setting when Wedge/USB Base is shipped from the factory is English (United States, QWERTY).  The keyboard descriptions listed above match the keyboard selection in the Windows Region and Language dialog accessible from the Control Panel.

Keyboard Transfer Rate

The default setting for the keyboard transfer rate is approximately 72 characters per second.  In some instances, this rate is too fast for the computer that the Wedge/USB Base is connected to.  You have the ability to reduce this rate to approximately 30 or 8 characters per second.

Includes: 6′ USB cable

Output Formats: Keyboard Wedge via USB or Virtual COM Port via USB
