RS-232 interface cable for calipers, micrometers, and other gages that use the Proximity serial connector. Several gage manufacturers use this connector type. Connects the gage’s Proximity output port to a DB9 host interface — compatible with WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, and GageWay Pro (Level Converter Cable required for GageWay Pro front channels). When paired with any of the above, measurement data outputs as keystrokes or USB serial — ready for direct input to SPC software or any data collection application.
OEM Part Number – 54-115-527
Gage Connector – Proximity Connector
Host Connector – DB9 Female
Length – 1 meter
Compatible Interfaces – WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels)
Cable Type – RS-232 Serial
Data Send Button – No
Compatible Gages – Fowler, Sylvac, and other brands using the Proximity connector (calipers, micrometers, and more)
$294.00

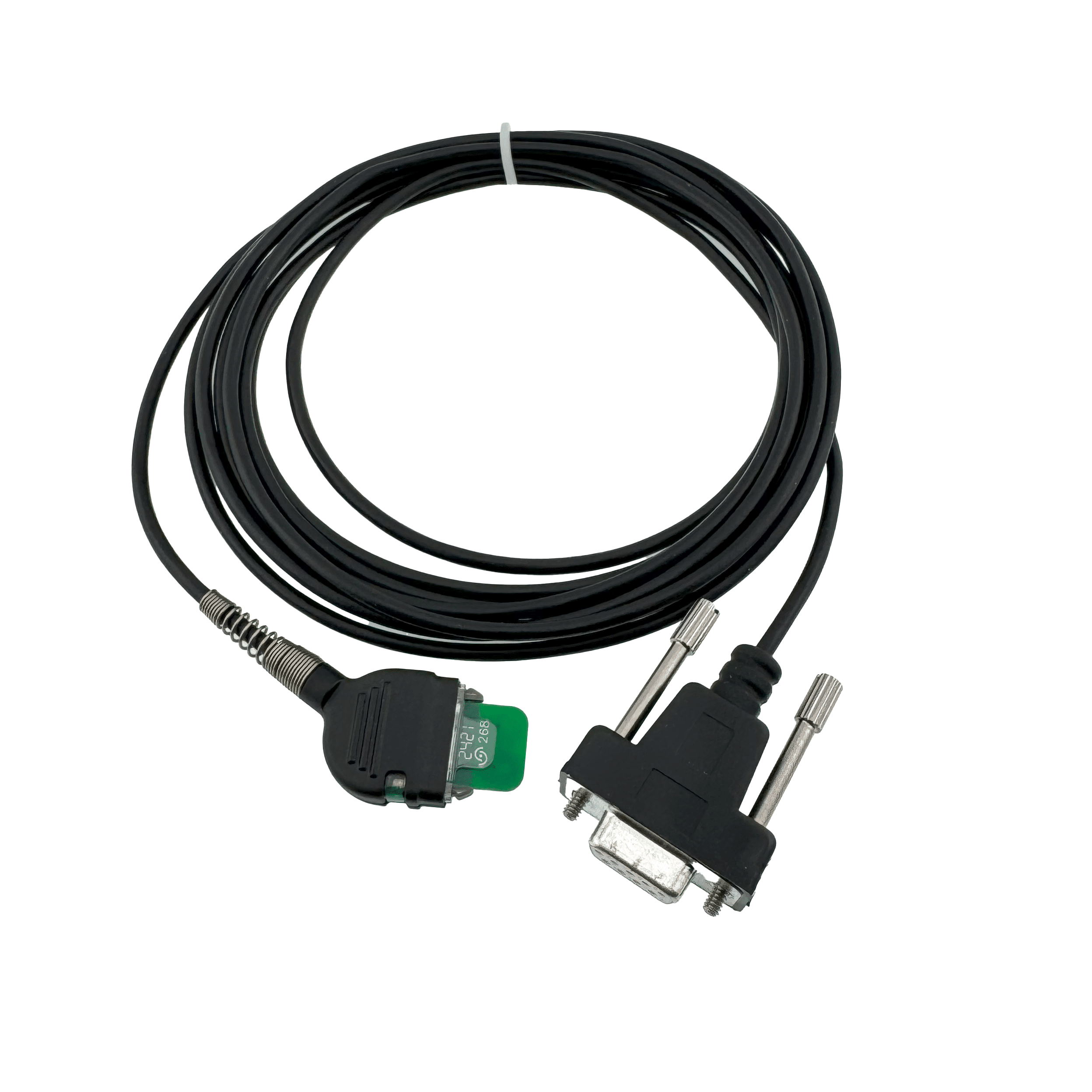

The 54-115-527 Proximity Connector RS-232 cable connects the serial output port of calipers, micrometers, and other instruments using the Proximity connector to a data collection host — eliminating manual transcription of measurement readings and enabling direct output to SPC software, inspection databases, or any application that accepts RS-232 serial data.

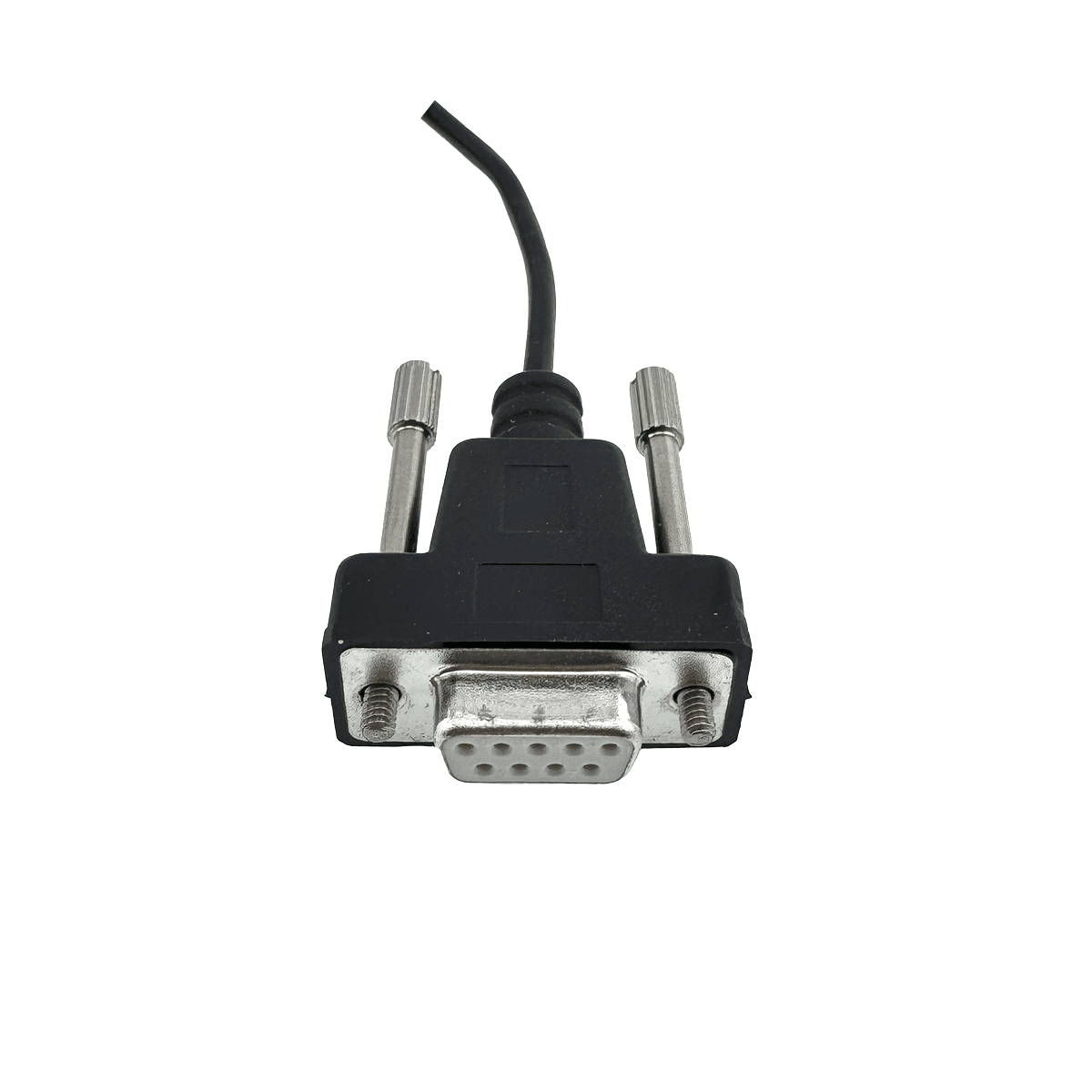

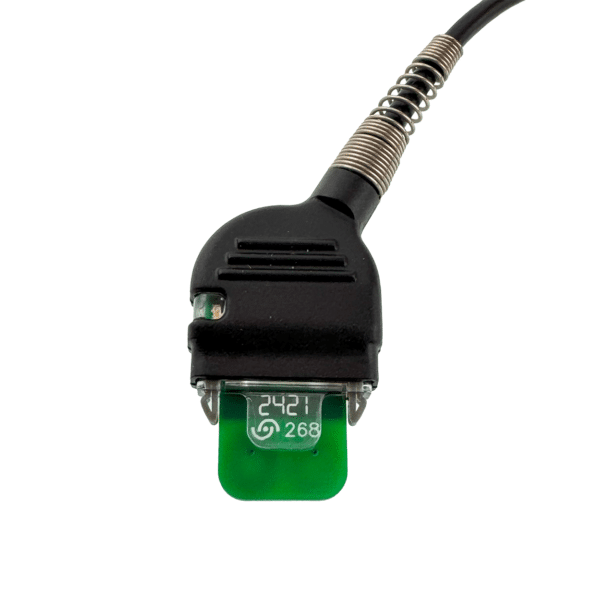

The gage-side connector mates with the Proximity output port on the instrument. The host side terminates in a DB9 male connector, compatible with WedgeLink keyboard wedges, MobileCollect RS-232 Remote wireless transmitters, and GageWay Pro wired interfaces.
The Proximity connector interface is used across several gage manufacturers. If your caliper, micrometer, or other instrument uses the Proximity connector, this cable is compatible regardless of brand. Common brands include Fowler and Sylvac, among others.
Not sure if your gage uses the Proximity connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages, or contact sales@microridge.com.
Before connecting the cable, verify the gage’s RS-232 communication parameters match your receiving interface. WedgeLink and GageWay Pro both support auto baud rate detection, which simplifies initial setup. For specific RS-232 settings on your instrument, refer to the manufacturer’s documentation.
Refer to your WedgeLink or GageWay Pro documentation for host-side comm parameter configuration.
WedgeLink AT / WedgeLink SP — WedgeLink keyboard wedge technology translates the Proximity connector RS-232 serial output into keystrokes, sending measurement readings directly into Excel, SPC software, or any application that accepts keyboard input — no software integration required. Auto baud rate detection simplifies setup; data parsing handles the native instrument output format.
MobileCollect RS-232 Remote — For wireless data collection without cable runs between the gage and the collection point, the RS-232 Remote pairs with this cable to transmit measurement readings wirelessly over MobileCollect’s RM2.4 proprietary protocol. 133-foot wireless range, encrypted, and resilient to RF noise common in industrial inspection environments.
GageWay Pro — Connects to the GageWay Pro via the multifunction serial port or the front gage channels (Level Converter Cable GW-LC required for front channels). The GageWay Pro provides USB serial and USB keyboard wedge output alongside its DB9 port, with configurable read modes (single, continuous, TIR) and data parsing for complex instrument output strings.
MicroRidge offers the 54-115-527 cable/connector for other systems in the MobileCollect product family:
RS-232 V2 Connector — Proximity Connector — If you need to take your gage wireless without a cable run to a host PC, this is the connector you need. It pairs with the RS-232 V2 Mobile Module (MC-MM-V2) transmitter, integrating directly into the MobileCollect wireless network. Note: due to the voltage requirements of the Proximity connector, this cable is only compatible with the RS-232 V2 Mobile Module — the Mini Mobile Module EVO (M3E) and Command Mobile Module (DC) cannot be used with this connector. Use the cable on this page for wired connections; use the V2 connector for mobility.
Q: Does this cable work with brands other than Fowler and Sylvac?
— Yes. The Proximity connector interface is used across multiple gage manufacturers. If your caliper, micrometer, or other instrument uses the Proximity connector, this cable is compatible regardless of brand. Use the MobileCollect Selection Tool to confirm compatibility for your specific model.
Q: What software can I send measurement data to with this cable?
— Any software application that accepts keyboard input or USB serial data — including SPC programs, Excel, custom inspection databases, and MES systems. On its own, this cable provides RS-232 serial communication via DB9 only. A MicroRidge interface (WedgeLink, GageWay Pro, or MobileCollect RS-232 Remote) is required to convert that signal to USB serial or keystrokes for input to any application on the host.
Q: Do I need to configure baud rate settings on my gage?
— The gage’s RS-232 comm parameters must match the receiving interface. WedgeLink and GageWay Pro both support auto baud rate detection, which simplifies initial setup. Refer to your gage manufacturer’s documentation for how to access RS-232 settings on your specific instrument.
Q: Can I use the Mini Mobile Module EVO (M3E) or Command Mobile Module (DC) with this cable for wireless?
— No. Due to the voltage requirements of the Proximity connector, this cable is only compatible with the RS-232 V2 Mobile Module for wireless use. The RS-232 V2 Connector — Proximity Connector is the correct wireless option for this gage type.
Q: What if I need a wireless solution instead of a wired cable?
— The RS-232 V2 Connector — Proximity Connector pairs with the RS-232 V2 Mobile Module to transmit measurement data wirelessly to any MobileCollect Base receiver. 133-foot range, RM2.4 encrypted protocol, no cable to the host PC required.
54-115-527 Specs | |
|---|---|
OEM Part Number | 54-115-527 |
Gage Connector | Proximity Connector |
Host Connector | DB9 Female |
Length | 1 meter |
Compatible Interfaces | WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels) |
Cable Type | RS-232 Serial |
Data Send Button | No |
Compatible Gages | Fowler, Sylvac, and other brands using the Proximity connector (calipers, micrometers, and more) |
