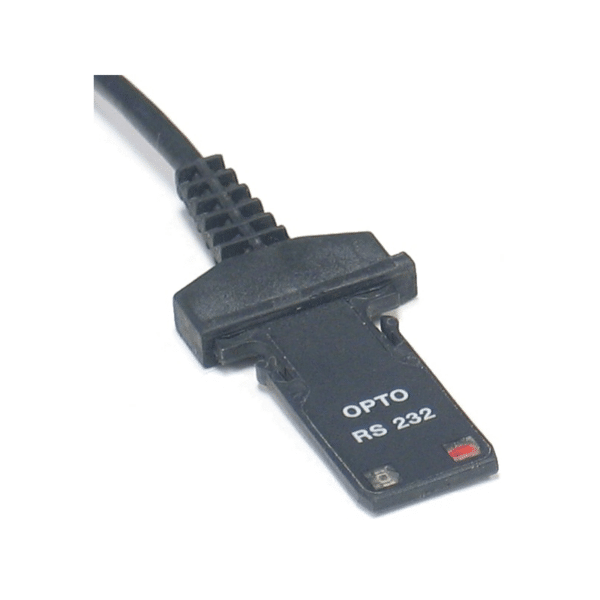

RS-232 interface cable for Fowler, Sylvac, and other gages that use the Simplex Opto serial interface. Connects the gage’s Simplex Opto output port to a DB9 host interface — compatible with WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, and GageWay Pro (Level Converter Cable required for GageWay Pro front channels). When paired with any of the above, measurement data outputs as keystrokes or USB serial — ready for direct input to SPC software or any data collection application.
OEM Part Number – 54-115-333
Gage Connector – Simplex Opto
Host Connector – DB9 Female
Length – 6 feet
Compatible Interfaces – WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels)
Cable Type – RS-232 Serial
Data Send Button – No
Compatible Gages – Fowler, Sylvac, and other Simplex Opto-equipped gages
$209.00
The 54-115-333 RS-232 cable connects the Simplex Opto serial output port of your Fowler, Sylvac, or other compatible gage to a data collection host — eliminating manual transcription of measurement readings and enabling direct output to SPC software, inspection databases, or any application that accepts RS-232 serial data.
The gage-side connector mates with the Simplex Opto data output port on the instrument. The host side terminates in a DB9 female connector, compatible with WedgeLink keyboard wedges, MobileCollect RS-232 Remote wireless transmitters, and GageWay Pro wired interfaces.
The Simplex Opto interface is used across several gage manufacturers — not exclusively Fowler and Sylvac. If your gage uses the Simplex Opto connection, this cable will work regardless of brand. Common applications include calipers, height gages, and indicators from:
Not sure if your gage uses the Simplex Opto interface? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages, or contact sales@microridge.com.
Before connecting the cable, verify the gage’s RS-232 communication parameters match your receiving interface. WedgeLink and GageWay Pro both support auto baud rate detection, which simplifies initial setup. For specific RS-232 settings on your gage, refer to the manufacturer’s documentation or contact your gage manufacturer.
Refer to your WedgeLink or GageWay Pro documentation for host-side comm parameter configuration.
WedgeLink AT / WedgeLink SP — WedgeLink keyboard wedge technology translates the Simplex Opto RS-232 serial output into keystrokes, sending measurement readings directly into Excel, SPC software, or any application that accepts keyboard input — no software integration required. Auto baud rate detection simplifies setup; data parsing handles the native Simplex Opto output format.
MobileCollect RS-232 Remote — For wireless data collection without cable runs between the gage and the collection point, the RS-232 Remote pairs with this cable to transmit measurement readings wirelessly over MobileCollect’s RM2.4 proprietary protocol. 133-foot wireless range, encrypted, and resilient to RF noise common in industrial inspection environments.
GageWay Pro — Connects to the GageWay Pro via the multifunction serial port or the front gage channels (Level Converter Cable GW-LC required for front channels). The GageWay Pro provides USB serial and USB keyboard wedge output alongside its DB9 port, with configurable read modes (single, continuous, TIR) and data parsing for complex instrument output strings.
MicroRidge offers the 54-115-333 cable/connector for other systems in the MobileCollect product family:
M3 Connector — Fowler/Sylvac Simplex Opto — For wireless data collection without a cable run to a host PC. Pairs with the Mini Mobile Module EVO (M3E) transmitter, integrating directly into the MobileCollect wireless network. Available in 3.5″ (recommended for calipers) and 6.5″ (recommended for all other gage types). Use the cable on this page for wired connections; use the M3 connector for mobility.
DC Connector — Fowler/Sylvac Simplex Opto — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
Q: Does this cable work with brands other than Fowler and Sylvac?
— Yes. The Simplex Opto interface is used across multiple gage manufacturers. If your gage uses the Simplex Opto serial output port, this cable is compatible regardless of brand. Use the MobileCollect Selection Tool to confirm compatibility for your specific model.
Q: What software can I send measurement data to with this cable?
— Any software application that accepts keyboard input or USB serial data — including SPC programs, Excel, custom inspection databases, and MES systems. On its own, this cable provides RS-232 serial communication via DB9 only. A MicroRidge interface (WedgeLink, GageWay Pro, or MobileCollect RS-232 Remote) is required to convert that signal to USB serial or keystrokes for input to any application on the host.
Q: Do I need to configure baud rate settings on my gage?
— The gage’s RS-232 comm parameters must match the receiving interface. WedgeLink and GageWay Pro both support auto baud rate detection, which simplifies initial setup. Refer to your gage manufacturer’s documentation for how to access RS-232 settings on your specific instrument.
Q: What if I need a wireless solution instead of a wired cable?
— The M3 Connector — Fowler/Sylvac Simplex Opto pairs with the Mini Mobile Module EVO to transmit measurement data wirelessly to any MobileCollect Base receiver. 133-foot range, RM2.4 encrypted protocol, no cable to the host PC required.
54-115-333 Specs | |
|---|---|
OEM Part Number | 54-115-333 |
Gage Connector | Simplex Opto |
Host Connector | DB9 Female |
Length | 6 feet |
Compatible Interfaces | WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels) |
Cable Type | RS-232 Serial |
Data Send Button | No |
Compatible Gages | Fowler, Sylvac, and other Simplex Opto-equipped gages |
