Wirelessly connect virtually any RS-232 device with a DB9 port to your SPC software or data collection application — eliminating manual data entry at the point of measurement. The MC-V2-DB9 is the universal DB9 connector for the RS-232 V2 Mobile Module (MC-MM-V2), designed to interface with scales, digital readouts, test & measurement instruments, and any other RS-232 device equipped with a standard 9-pin serial port. Available in four configurations to match your device’s port gender and wiring requirement.
Transmitter Family – RS-232 V2 Mobile Module
Standard Cable Length – 6.5″
SKU – MC-V2-DB9F-S-T3-R2-6.5 (Female Standard) | MC-V2-DB9F-N-T2-R3-6.5 (Female Null Modem) | MC-V2-DB9M-S-T3-R2-6.5 (Male Standard | MC-V2-DB9M-N-T2-R3-6.5 (Male Null Modem)
Required Hardware – RS-232 V2 Mobile Module (V2) and MobileCollect Base
Read Button – No – reading initiated via configurable command from V2 transmitter
Connector IP Rating – N/A
Gage Brand – RS-232 Gage with a DB9 Port
$105.00
The RS-232 V2 Wireless Connector for DB9 devices is the universal interface cable between any RS-232 serial device with a 9-pin DB9 port and the MobileCollect Wireless measurement collection system. Where most RS-232 V2 connector cables are purpose-built for a specific gage model, the MC-V2-DB9 is the catch-all solution for the broad universe of RS-232 instruments — scales, balances, digital readouts, height gages, torque testers, force gauges, and any other device that communicates over a standard 9-pin RS-232 serial port.
This connector plugs into the DB9 RS-232 port on your device and attaches to the RS-232 V2 Mobile Module (MC-MM-V2) transmitter. The transmitter handles the full wireless link to a MobileCollect Base receiver on your PC, delivering measurement data to any SPC software or data collection application that monitors a COM port or accepts keyboard entry. Need custom wiring? Contact us.
For a detailed overview of RS-232 serial communication, DB9 port configurations, and how to send data from RS-232 devices into your software, see the MicroRidge RS-232 Interfacing Guide.
The MC-V2-DB9 is available in four configurations based on two variables: gender (male or female) and wiring (standard or null-modem). Selecting the correct combination requires knowing the gender of your device’s DB9 port and the wiring convention it uses for communication.
Gender on a DB9 connector refers to the physical pins or sockets on the connector end that plugs into your RS-232 device.

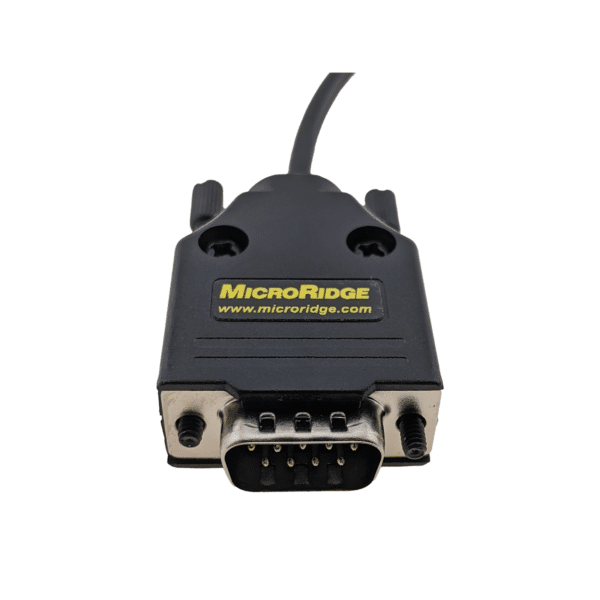

A male DB9 connector has nine protruding metal pins. It mates with a female DB9 port (a port with nine pin sockets) on your device. If you look at your device’s RS-232 port and see recessed holes arranged in two rows (the port that accepts a plug), you need a male connector.
A female DB9 connector has nine recessed sockets. It mates with a male DB9 port (a port with exposed pins) on your device. If you look at your device’s RS-232 port and see protruding pins, you need a female connector.
A simple field check: if your device’s port looks like it has pins sticking out, you need a female connector. If it has holes, you need a male connector.
The wiring convention determines how the transmit (TX) and receive (RX) signal lines are routed inside the cable. Getting this wrong means data goes nowhere — or more accurately, the wrong device is talking and no one is listening.
Standard (Straight-Through) Wiring connects each pin number on one end to the same pin number on the other end. This works because DCE and DTE devices assign their TX and RX lines to opposite pin numbers by convention — so a straight-through DB9 cable automatically routes each side’s transmit line to the other’s receive line without any explicit crossing in the cable itself. Use this wiring when your RS-232 device is designated as DCE (common on instruments like scales, test equipment, and measurement devices with traditional serial ports) and the receiving end — in this case the RS-232 V2 Mobile Module — is designated as DTE.
Null-Modem Wiring crosses the TX and RX lines: the TX pin on one end connects to the RX pin on the other, and vice versa. This is required when both your RS-232 device and the interface are wired as DTE (Data Terminal Equipment), meaning both transmit on their TX pin. Without crossing those lines, both sides are transmitting on the same wire and listening on the same wire — and nothing gets through. The null-modem configuration resolves this by explicitly crossing TX and RX so that each side’s transmit line feeds the other’s receive line. Many modern RS-232 instruments — including gages and measurement devices — are wired as DTE, making null-modem wiring the more frequently required option.
Note: A full null-modem configuration also crosses the RTS/CTS and DTR/DSR handshaking lines. If your device requires hardware flow control, contact MicroRidge to confirm your wiring requirement before ordering.
Configuration | DB9 End | Wiring | Use When | Part Number |
|---|---|---|---|---|
Male Standard | Pins (male) | Straight-Through (Standard) | Device port has sockets (female); device is DCE | MC-V2-DB9M-S-T3-R2-6.5 |
Male Null-Modem | Pins (male) | TX/RX Crossed (Null-Modem) | Device port has sockets (female); device is DTE | MC-V2-DB9M-N-T2-R3-6.5 |
Female Standard | Sockets (female) | Straight-Through (Standard) | Device port has pins (male); device is DCE | MC-V2-DB9F-S-T3-R2-6.5 |
Female Null-Modem | Sockets (female) | TX/RX Crossed (Null-Modem) | Device port has pins (male); device is DTE | MC-V2-DB9F-N-T2-R3-6.5 |
If you need a configuration not listed, your device requires custom pinout wiring beyond standard or null-modem, or you’re simply not sure which configuration you need, contact MicroRidge. Custom wiring is available.
For additional detail on DB9 port conventions, VCP setup, and RS-232 interfacing in general, visit the MicroRidge RS-232 Interfacing Guide.
The RS-232 V2 Mobile Module (MC-MM-V2) is purpose-built for RS-232 gages that need to move — handheld thickness gages, portable protractors, and other instruments that travel with the operator or the part. It takes your RS-232 gage wireless without replacing it, connecting via this cable and transmitting measurement data to a MobileCollect Base receiver on your PC, where it’s available to any SPC software or data collection application.
What sets the RS-232 V2 apart is configurable command output. Many RS-232 gages won’t broadcast a reading until they receive a command string — with the RS-232 V2 Mobile Module, you program that command into the transmitter so readings can be triggered directly from the module. No button on the gage, no operator reaching across the fixture.
MobileCollect is a brand-agnostic measurement collection platform. It does not lock you into a single gage manufacturer or measurement type. Whether your floor runs Mitutoyo protractors alongside Olympus thickness gages, Mahr micrometers, or Starrett indicators, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system.
MC-V2-DB9-6.5 Specs | |
|---|---|
Transmitter Family | RS-232 V2 Mobile Module (V2) |
Standard Cable Length | 6.5 inches |
SKU | MC-V2-DB9M-S-T3-R2-6.5 (Male Standard) MC-V2-DB9M-N-T2-R3-6.5 (Male Null Modem) MC-V2-DB9F-S-T3-R2-6.5 (Female Standard) MC-V2-DB9F-N-T2-R3-6.5 (Female Null Modem) |
Required Hardware | RS-232 V2 Mobile Module (V2) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | RS-232 Gage with a DB9 Port |
The RS-232 V2 Connector – DB9 connects 206 gage models from 55 manufacturers to the RS-232 V2 Mobile Module. Most of them are scales and balances, displays and counters and height gages. Every model below is matched to this part in the MicroRidge Measurement Collection System Builder.
Not sure which model you have? Search for it in the Measurement Collection System Builder, or identify it from a photo there.
Indicators: CD11, CD Series, Defender 5000 TP51P, Defender 5000 TP52P, Defender 5000 TP52XW, T31P, T32MC, T32ME, T51P, TD52P, TD52XW
Scales and balances: (EX)Explorer - after 2013, Adventure Pro - AV Series, Adventurer (2014), Adventurer - AX Series, Adventurer Pro, Discovery, Discovery Series, Explorer Series - after 2013, NLV Series, NV / NVT, Pioneer - PA Series, Pioneer - PX Series, PR Series, Ranger 3000, Ranger 3000 Series, Ranger 4000, Ranger 7000, Ranger 7000 Series, Scout - red case, Scout Pro, Scout Pro - blue case, Traveler, Traveler Series
Other gages: MB45_MB90_MB120
Scales and balances: 422, 422 / 442, AX models, IND236, MA Series, ME Series, ML Series, MR Series, MS-L Series, MS-S & MS-L, MS-S Series, MS-TS, Multiple, PG-S, PG-S Series, Viper SW Series, XPE Series, XP Series, XSE, XS Series, XS Series, X, M & L platforms
Other gages: HB43, HB43-S, HB Series, Ph/ION S220, SevenMulti
Displays and counters: GC 100, ND 280, ND 287, ND 780, ND1100 (QC100), ND1200 (QC200), ND 1202T, ND1300 (QC320), ND1400 (QC330), ND 2100 G, ND 2104, ND 2104 G, ND 2108, ND 2108 G, QC 100 / ND 1100, QC 200 / ND 1200, QC200 Series, QC 320 / ND 1300, QC 330 / ND 1400, TC 220
Scales and balances: EJ, EK-i, EW-12Ki, EW-150i, EW-1500I, FX-GD, FX-i, FX-iWP, FX-iWP (water-proof), FZ-GD, FZ-i, FZ-iWP, FZ-iWP (water-proof), GF-A, GH series, GX-A, HR-A, HR-AZ
Height gages: 150 / 300 / 350 / 600, 150 / 300 / 450, Hi-Cal 150, Hi-Cal 300, Hi-Cal 450, Z_Cal 150, Z_Cal 300, Z_Cal 350, Z_Cal 600
Displays and counters: D50S, D50S-FAST, D50S-PRO, D60S-PRO, D80S, D100S, S_View D80S, S_View D100S
Micrometers: 2025 / 2050, 4025G, 4050G, BenchMike 4025S, BenchMike 4050S, ZM Pro 25, ZM Pro 50
Height gages: 54-931-150-0, 54-931-300-0, 54-931-450-0, Hi CAL, Trimos V+ Series, Z_Cal 350 / 600
Scales and balances: ES Series, KL Series, L Series, LW Series, M Series, S series
Scales and balances: 572, 573, DS Series, FKB Series, KB Series
Height gages: 400 / 700, Micro-Hite plus M, TESA Hite, Models 400 / 700, uHite
Displays and counters: TWIN-T20
Displays and counters: 776, 776A - 776E, QC 200, QC200
Other gages: DMA 4100, DMA 4500, DMA 5000
Other gages: RS232 NULL - Male, RS232 Standard - Female, RS232 Standard - Male
Scales and balances: Cubis Series (MSA), Entris II
Other gages: YADAP-RS-232
Scales and balances: K & KL/K-KL Series, RB Series
Indicators: SBI-521
Scales and balances: S100-150 / 300 / 600
Hardness and surface testers: M300 (DB9 female), M300C (DB9 female)
Thickness gages: 8600, Magna-Mike 8600
Displays and counters: SI7000, SI7500
Scales and balances: CBC Series
Other gages: VT1100
Other gages: XP2i
Scales and balances: Wizard 900
Scales and balances: T103P
Other gages: Haze Gard Plus
Displays and counters: EMS4
Scales and balances: TA & TT
Other gages: 441
Other gages: XP2i
Scales and balances: Pinnacle
Other gages: E8300 / E8302 / 5911013
Displays and counters: FB2550, 1200
Other gages: 5050-06XP
Hardness and surface testers: NI-600
Other gages: PM-300
Other gages: SR-G100
Other gages: LF-Plus
Other gages: 97152
Force and torque gages: 10-x
Scales and balances: KA-200 Counter
Hardness and surface testers: NI-600 Series
Micrometers: 2025, 2050
Displays and counters: 310B / 310C / 350L / 5100
Scales and balances: 7300 / 7500 / 7600
Scales and balances: Series 321 LS
Other gages: Delta Hi-E
Indicators: TI-500E Plus
Height gages: 300 / 600 / 1000
Scales and balances: 3000, 6000, 12K, 30K, 60K
Indicators: TI-500E
Force and torque gages: 1502
Other gages: HST180
Other gages: Series II and IIi
No, this cable/connector is compatible with the RS-232 V2 Mobile Module. Like the Mini Mobile Module, the RS-232 V2 Mobile Module is a MobileCollect Transmitter meaning it can be paired to a MobileCollect Base along with Mini Mobile Modules and the other MobileCollect Transmitters.
