Wirelessly connect your Mitutoyo Series 950 Pro 3600 Digital Protractor to your SPC software or data collection application — eliminating manual data entry errors at the point of measurement. This is the RS-232 V2 Mobile Module connector for Mitutoyo 950 Series Digital Protractors with SPC output (950-316, 950-318). Connects to the RS-232 V2 Mobile Module (MC-MM-V2) to bring your protractor online with MobileCollect. No read button required — configure the transmitter to initiate readings directly from the module.
Transmitter Family – RS-232 V2 Mobile Module
Standard Cable Length – 6.5″
SKU – MC-V2-PRO3600-6.5
Required Hardware – RS-232 V2 Mobile Module (V2)Â and MobileCollect Base
Read Button – No – reading initiated via configurable command from V2 transmitter
Connector IP Rating – N/A
Gage Brand – Mitutoyo
$115.00

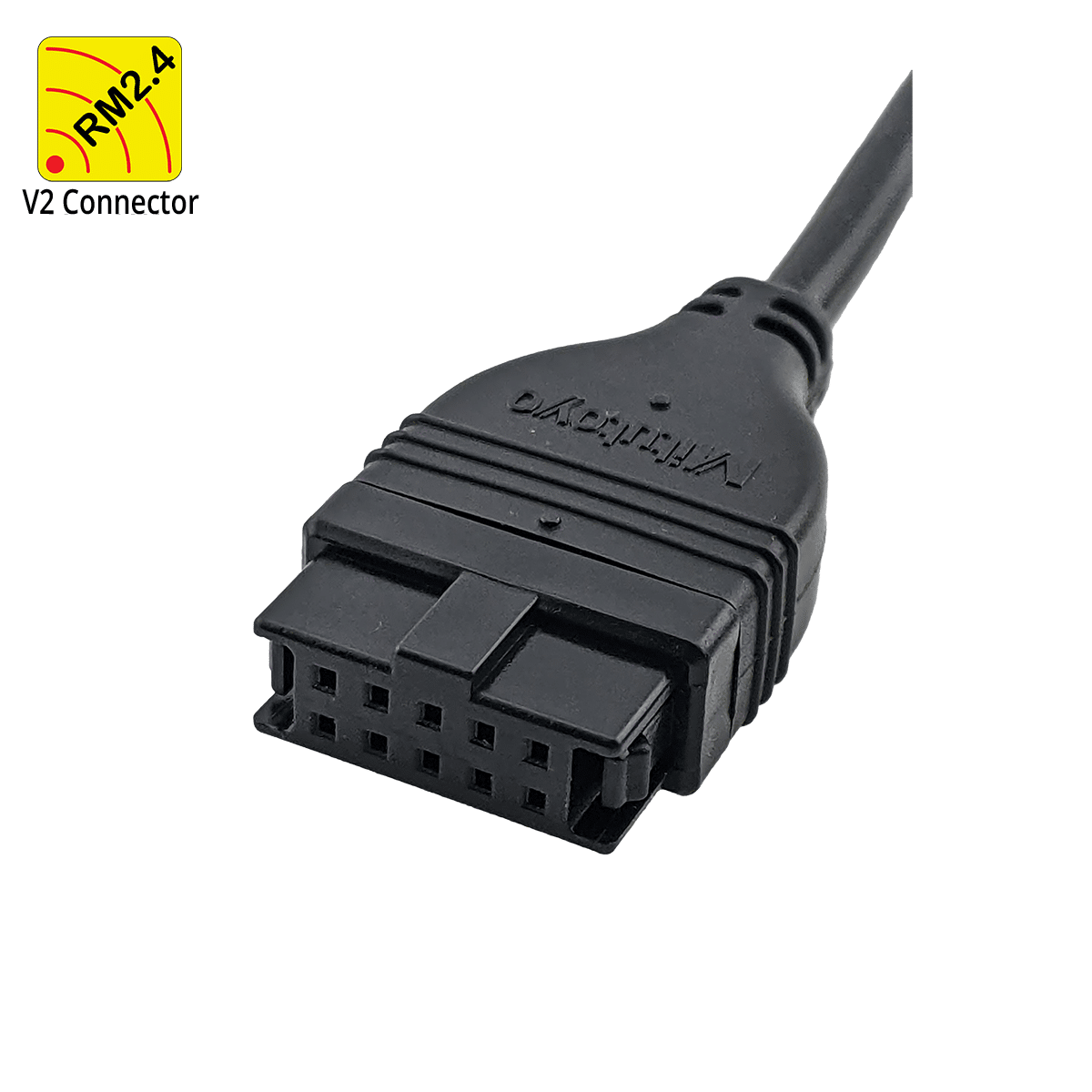

The RS-232 V2 Wireless Connector for the Mitutoyo Pro 3600 Digital Protractor is the interface cable between your Mitutoyo Series 950 angle measurement instrument and the MobileCollect Wireless measurement collection system. Once connected, angle measurement data transmits wirelessly from the gage to your SPC software or data collection application — eliminating manual data entry errors at the point of measurement.
This connector plugs into the RS-232 SPC output port on compatible Mitutoyo 950 Series Digital Protractors and attaches to the RS-232 V2 Mobile Module (MC-MM-V2) transmitter. The transmitter handles the full wireless link to a MobileCollect Base receiver on your PC or workstation. Unlike Digimatic connector cables, this connector is designed for RS-232 serial communication — there is no read button on the connector itself. Instead, the RS-232 V2 Mobile Module is configured with the appropriate command string to request a measurement from the protractor, so readings can be initiated directly from the transmitter without any interaction at the gage.
The MC-V2-PRO3600 is compatible with Mitutoyo Series 950 Pro 3600 Digital Protractors that include an SPC data output port. Verify your instrument has an RS-232 SPC output port before ordering. Compatible Pro 3600 models include:
Not sure if your gage uses the MC-V2-PRO3600 connector? Use the MobileCollect Selection Tool to look up your specific model from a database of over 3,500 gages.
The RS-232 V2 Mobile Module (MC-MM-V2) is purpose-built for RS-232 gages that need to move — handheld thickness gages, portable protractors, and other instruments that travel with the operator or the part. It takes your RS-232 gage wireless without replacing it, connecting via this cable and transmitting measurement data to a MobileCollect Base receiver on your PC, where it’s available to any SPC software or data collection application.
What sets the RS-232 V2 apart is configurable command output. Many RS-232 gages won’t broadcast a reading until they receive a command string — with the RS-232 V2 Mobile Module, you program that command into the transmitter so readings can be triggered directly from the module. No button on the gage, no operator reaching across the fixture.
MobileCollect is a brand-agnostic measurement collection platform. It does not lock you into a single gage manufacturer or measurement type. Whether your floor runs Mitutoyo protractors alongside Olympus thickness gages, Mahr micrometers, or Starrett indicators, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system.
MC-V2-PRO3600-6.5 Specs | |
|---|---|
Transmitter Family | RS-232 V2 Mobile Module (V2) |
Standard Cable Length | 6.5 inches |
SKU | MC-V2-PRO3600-6.5 |
Required Hardware | RS-232 V2 Mobile Module (V2) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | Mitutoyo |
