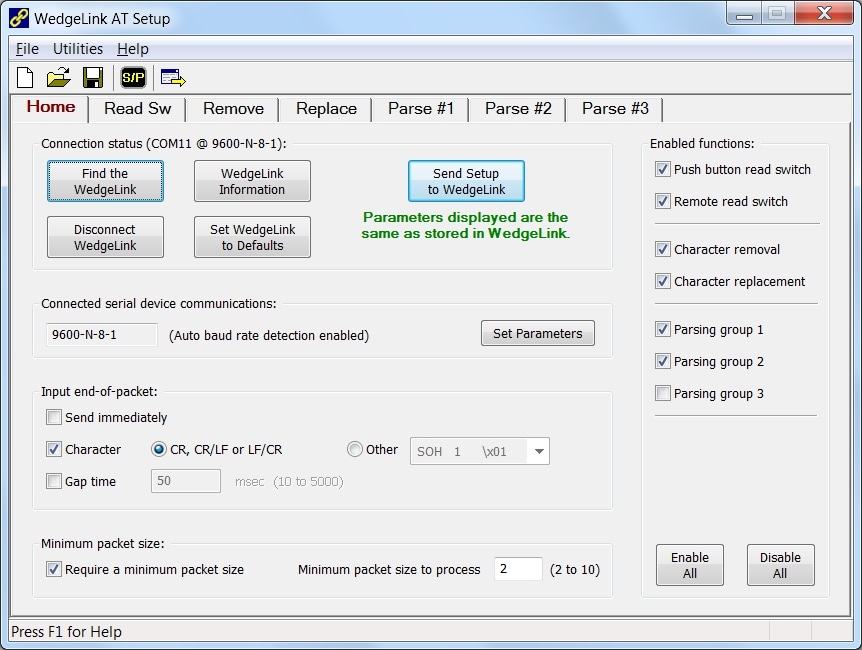

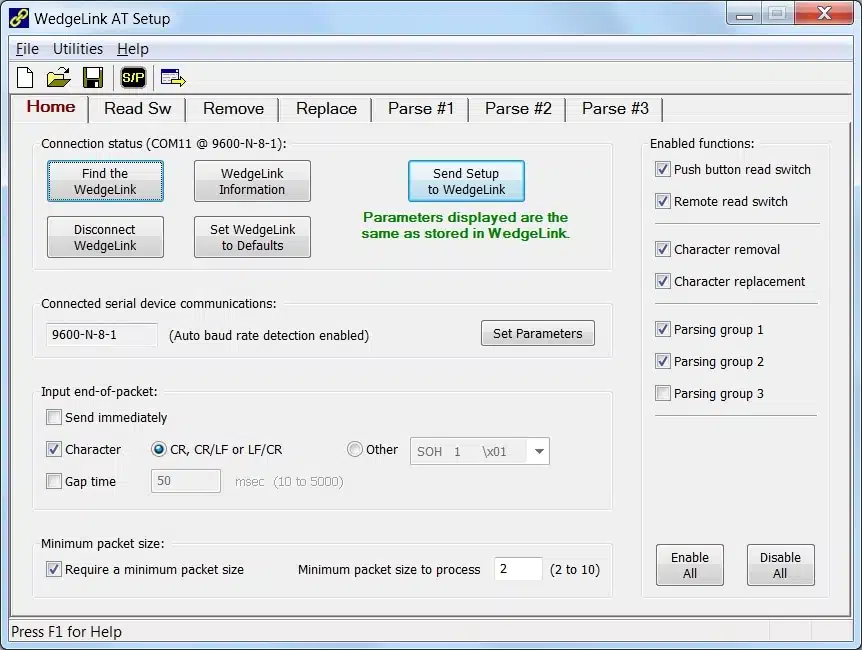

The Setup Program features a series of tabs that allow you to easily configure your desired parsing scheme. To use the Setup Program, simply connect the USB cable to the Setup Port on the WedgeLink AT and press the “Find the WedgeLink” button on the Setup Program. When you make changes in the setup parameters, the Setup Program will notify you that you need to send these parameters to WedgeLink AT.

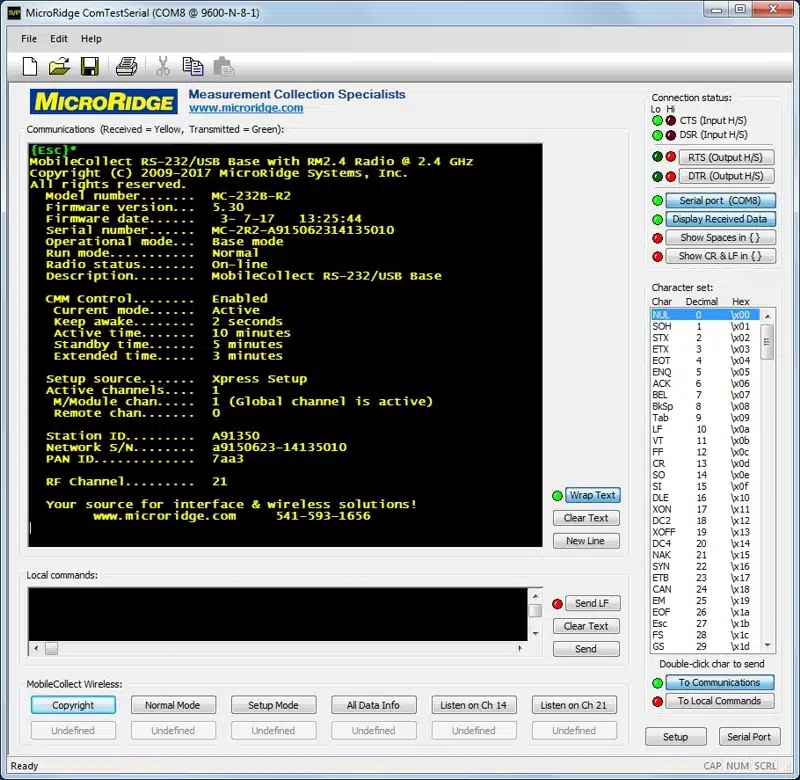

The ComTestSerial serial communications test program allows you to test communications with any serial device. MicroRidge saw a need for a fast, effective and easy-to-use serial test communications program. MicroRidge developed ComTestSerial to meet that need, and are offering it free of charge to anyone who has a need for a communications test program. When testing your MobileCollect system, you can easily send the data received by a Base to ComTestSerial. You can also send commands from ComTestSerial to your Base. ComTestSerial is included with the Xpress and Extended Setup Programs.
MicroRidge products that require USB Serial drivers are all based on the USB to Serial IC manufactured by FTDI Chip (www.ftdichip.com).
The latest drivers and a description of the supported operating systems are available at www.ftdichip.com/Drivers/VCP.htm. The drivers included in the table below are the setup executable drivers available from the link in the Comments on the FTDI Chip site. These drivers have a file extension of exe. We do not use the drivers with the zip extension.
This driver is a WHQL (Windows Hardware Quality Labs) certified release. This driver is only for use with products containing the USB to Serial IC manufactured by FTDI Chip.
After downloading the USB Driver it must be installed/executed with admin rights to function properly.
Products with FTDI Chip | Supported Operating Systems | USB Driver Version | Release Date | |
|---|---|---|---|---|
MobileCollect Wireless | USB Base, RS-232/USB Base, Wedge/USB Base, USB MicroBase, Digital Remote, RS-232 Remote | Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Windows Server 2008 R2, Windows Server 2012 R2 | 2.12.36.20 | 3/04/2025 |
GageWay Interfaces | Pro Series (2, 4, 8) SM USB Output | |||
WedgeLink | AT Hardware Keyboard Wedge | |||
