WedgeLink Keyboard Wedges: Your instrument's readings, typed right where you need them

Connect a scale, force tester, DRO or any RS-232 instrument to a WedgeLink and each reading is typed wherever the cursor is: Excel, SPC software, an ERP screen or a web form. The WedgeLink AT keeps just the number you need, and in Excel it can add the date and time.

531 RS-232 instrument models in the configurator
Just the number, or with units, date and time in Excel
Types like a USB keyboard, no drivers once it is set up

Find your instrument

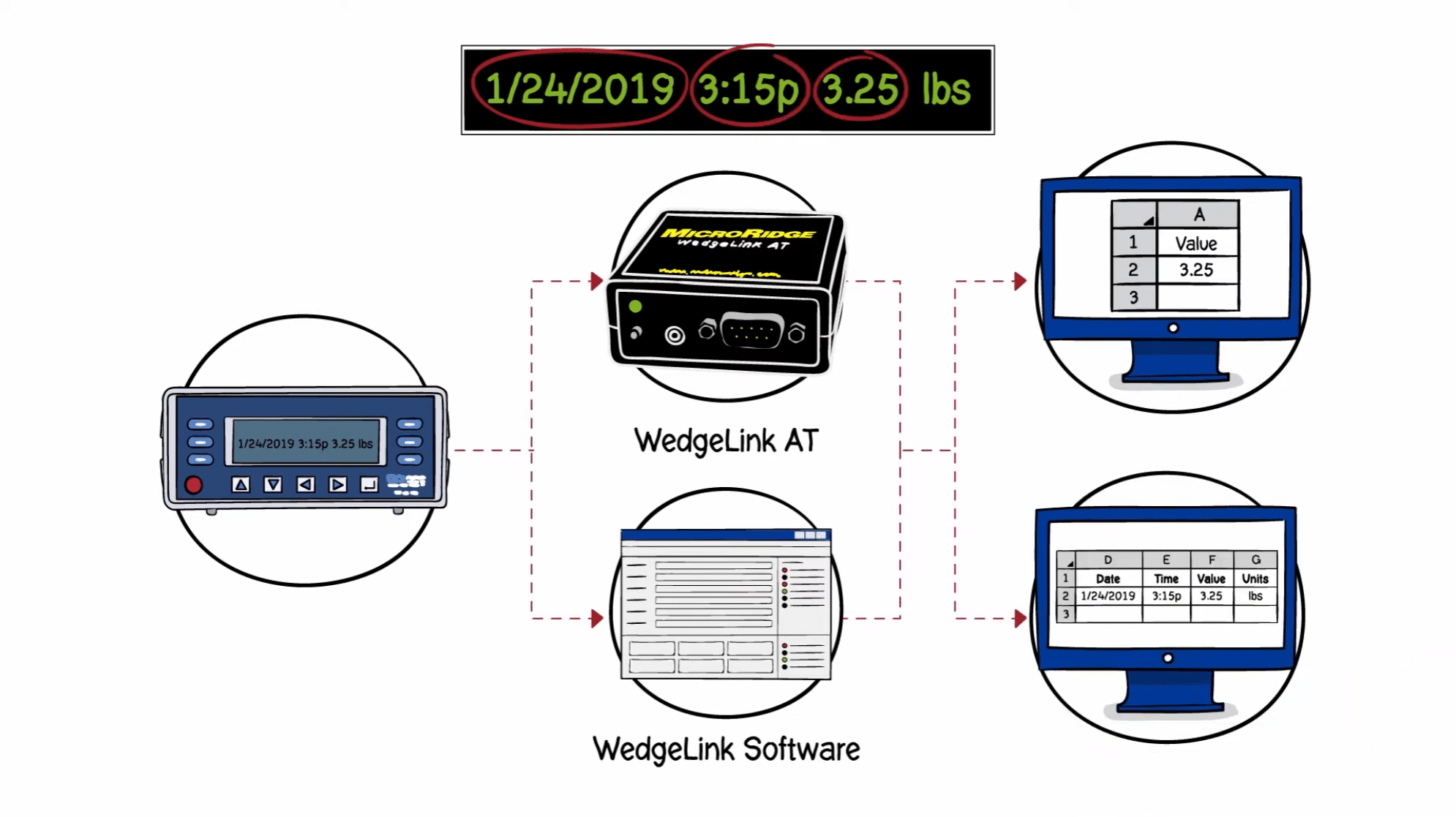

How WedgeLink works: an RS-232 instrument such as a bench scale, force tester or digital readout sends each reading over its RS-232 cable to a WedgeLink AT. The AT keeps the part of the reading you need (for example just the number, without status codes, spaces or units), can split values into columns, and adds the date and time in Excel. It types the clean value over USB into Excel, SPC software or a web form.

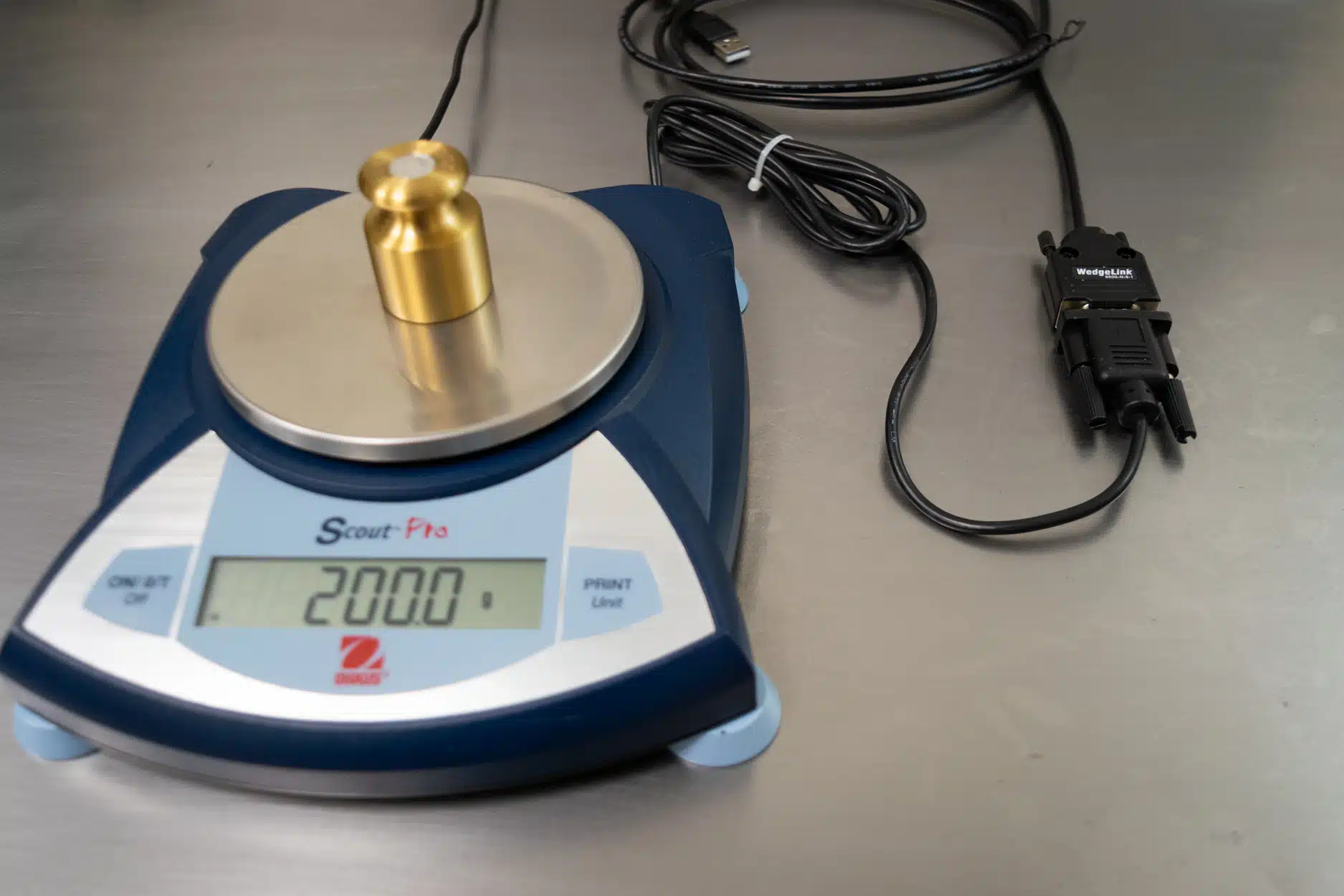

In this setup: WedgeLink AT, DB9 cable for the scale.

Set up your instrument →

Made for instruments that already send RS-232

531RS-232 instrument models in the configurator's list

For each one the configurator suggests a cable, gives the serial settings where MicroRidge has them, and writes out every setup step. When the exact wiring is not on file it adds the DB9 Adapter Kit, and AutoBaud learns any missing settings.

AutoBaudThe AT finds the instrument's serial settings, 600 to 57,600 baud

Press the AT's Reset button, then the instrument's print button, and it learns the baud rate and format: 600 to 57,600 baud, none, even or odd parity, 7 or 8 data bits.

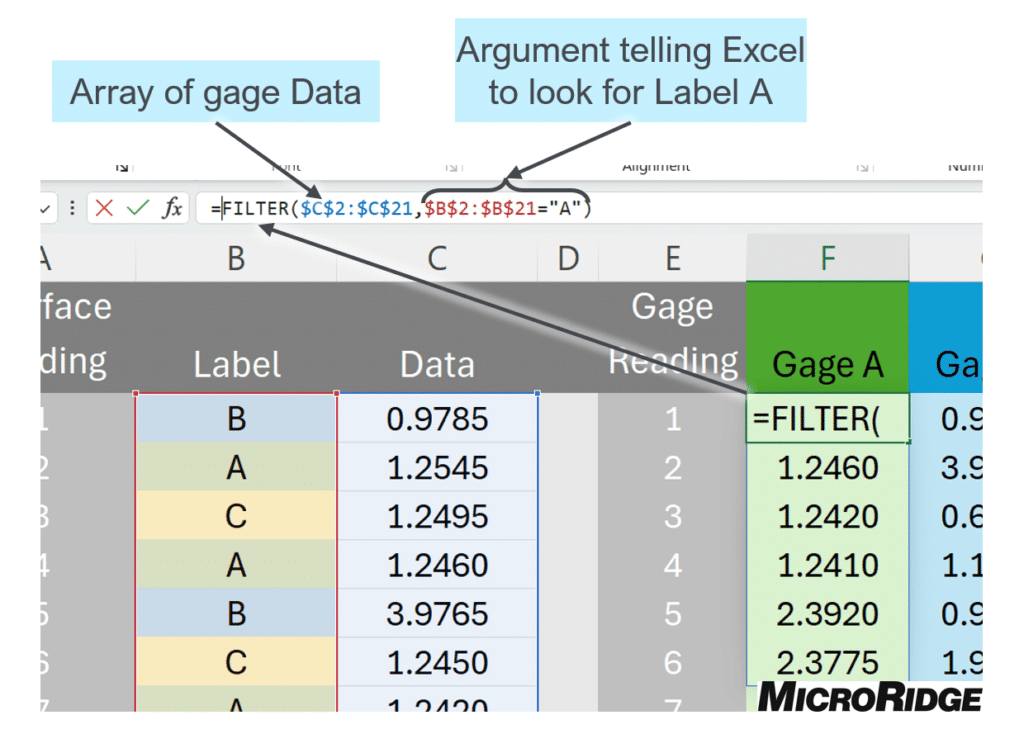

ParsingKeep the number, add units, split fields into cells, and add date and time in Excel

Remove characters by type, replace characters, and use up to three parse groups to keep the number, round it, add text before or after, split values into columns, or keep only the lines you want. Date and time stamps work in Excel.

No driversTypes like a USB keyboard into any program

In use there is nothing to install: the computer sees a USB keyboard. Setting the AT up is done once on a Windows PC, with the WedgeLink AT Setup program and its USB driver.

COM portOr works as a serial port for software that reads one

Plugged in by its RS-232 & Prog port, the AT shows up as a COM port and sends the parsed reading at 9600-N-8-1, whatever the instrument's own baud rate.

WedgeLink RS-232 Connection Configurator

Which WedgeLink fits your instrument?

Find your scale, gage or instrument, or ask what WedgeLink can do with your data. We’ll show which WedgeLink fits, its settings and wiring, and write out every setup step.

Instrument make and model

Serial settings and wiring
Just the number, units, date and time
Step-by-step setup and a plan PDF
Answers about your data

Not on our list, or no model number handy? Open the configurator →

Shop WedgeLink

Choose your WedgeLink keyboard wedge

The WedgeLink AT hardware keyboard wedge handles the widest range of RS-232 instruments and settings. The SP and the WedgeLink software keyboard wedge cover two specific cases.

Most versatile

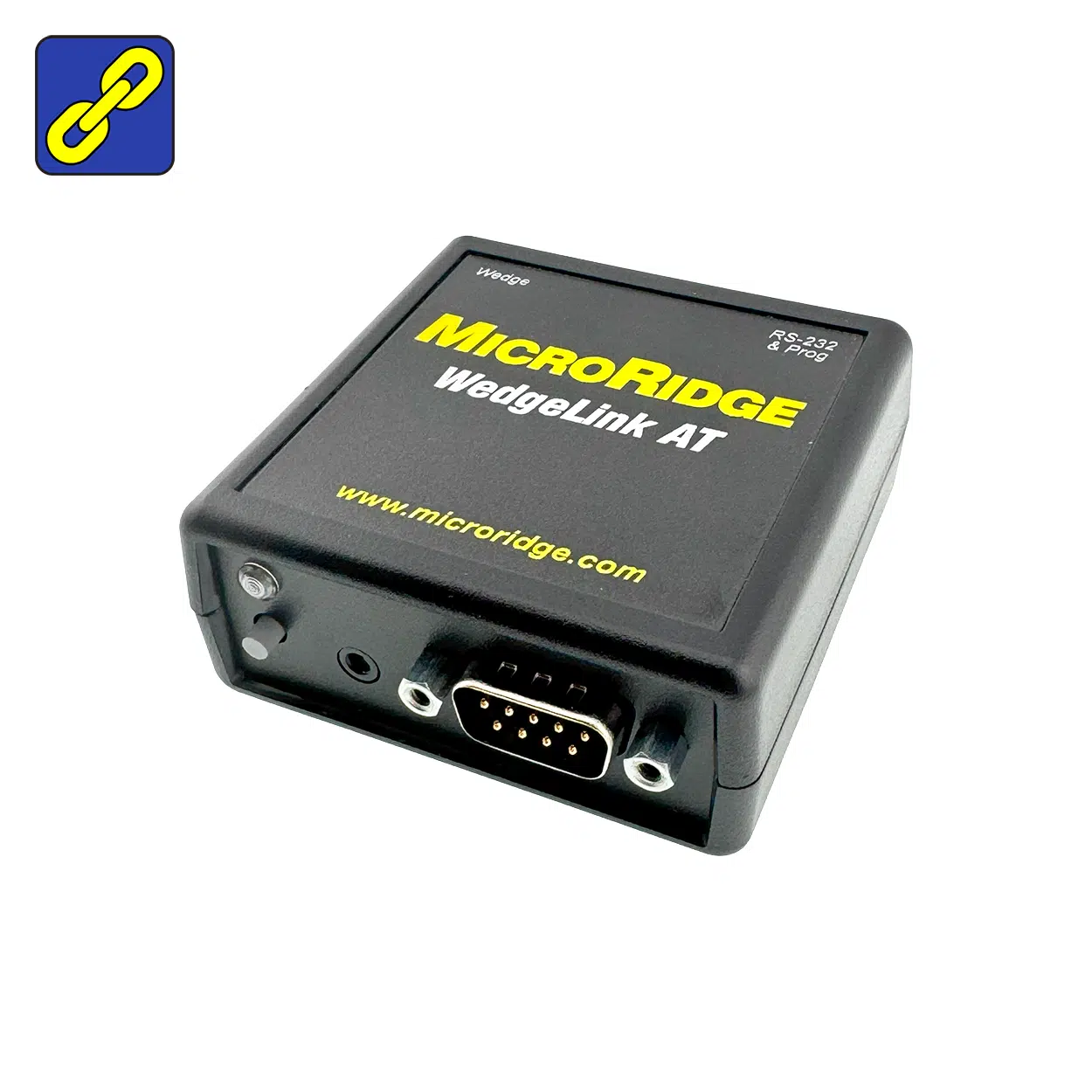

Hardware keyboard wedgeWedgeLink AT

Programmable hardware keyboard wedge for scales, DROs, hardness testers and other specialized RS-232 instruments. Works with a wide range of COM settings.

Learns your instrument's settings on its own (AutoBaud)
Cleans up the reading: strips headers, keeps the number, adds a prefix or suffix
One-time setup with the Windows AT Setup program
Operators just take readings after that

$275Add to cartWLNK-AT

30-day guarantee: if our tech support can't get it working with your instrument, return it for a full refund.

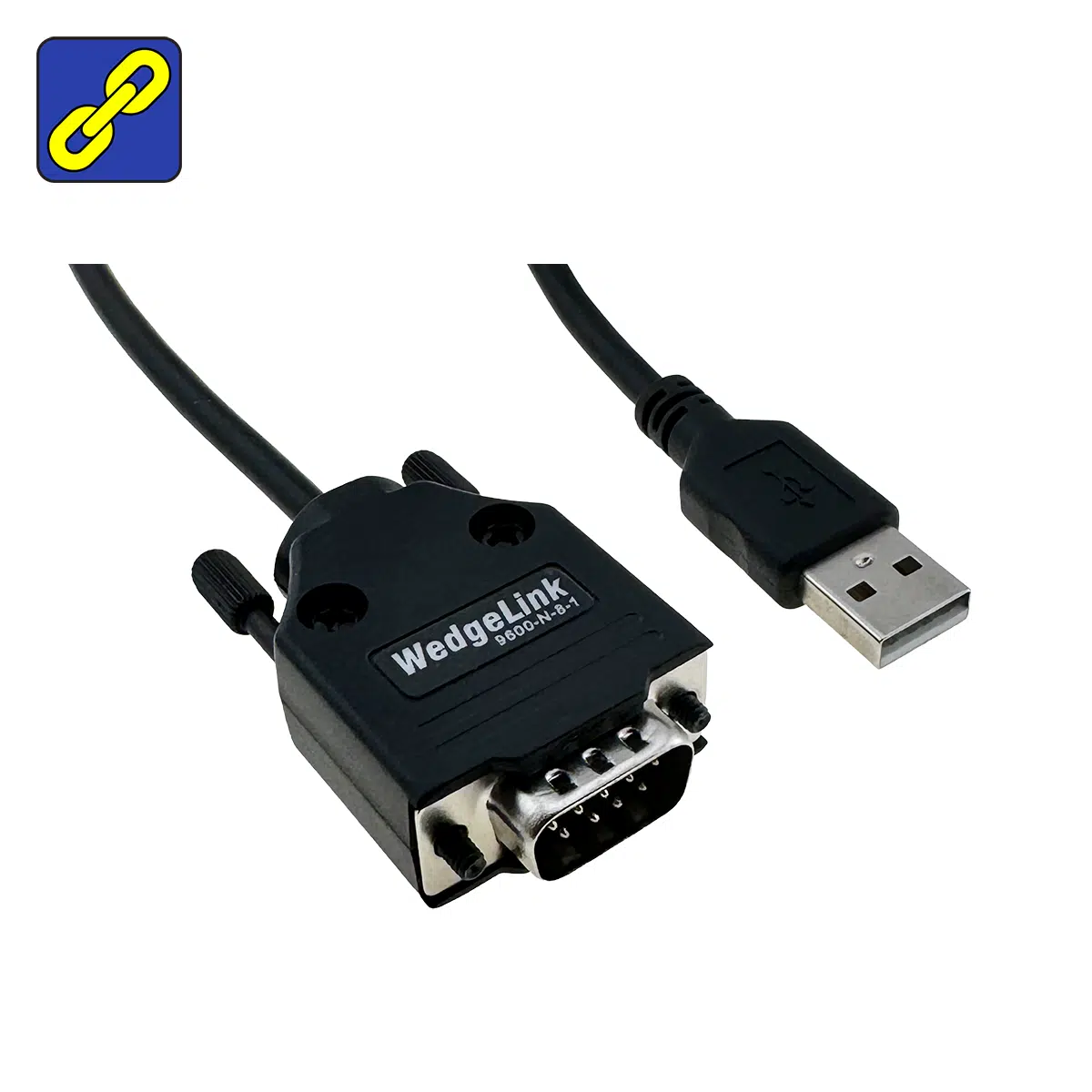

Reading already clean?WedgeLink SP

Plug-and-play hardware keyboard wedge that passes the reading through as is. Pick the model that matches your instrument's setting.

From $180Choose model

PC at the station, need two-way?WedgeLink Lite & Standard

Software keyboard wedge for a Windows PC. Both editions log to a CSV or TXT file and add a date and time stamp; Standard adds full parsing, math, and print or zero commands.

From $99Options Free 3-day trial

Not sure which one? Check your instrument → We’ll name the model and settings.

Cables, adapters and switchesFor instruments with a different connector or pinout
