MobileCollect QuickStart

Welcome to MobileCollect, let's get your measurement collection system setup!

Let’s start by communicating with the Base

  1. Download and install Xpress Setup.
    • If you already have Xpress Setup or Extended Setup installed you’ll need to update to the latest version to communicate with the new EVO Bases.
  2. Plug the MobileCollect Base into your computer via USB.

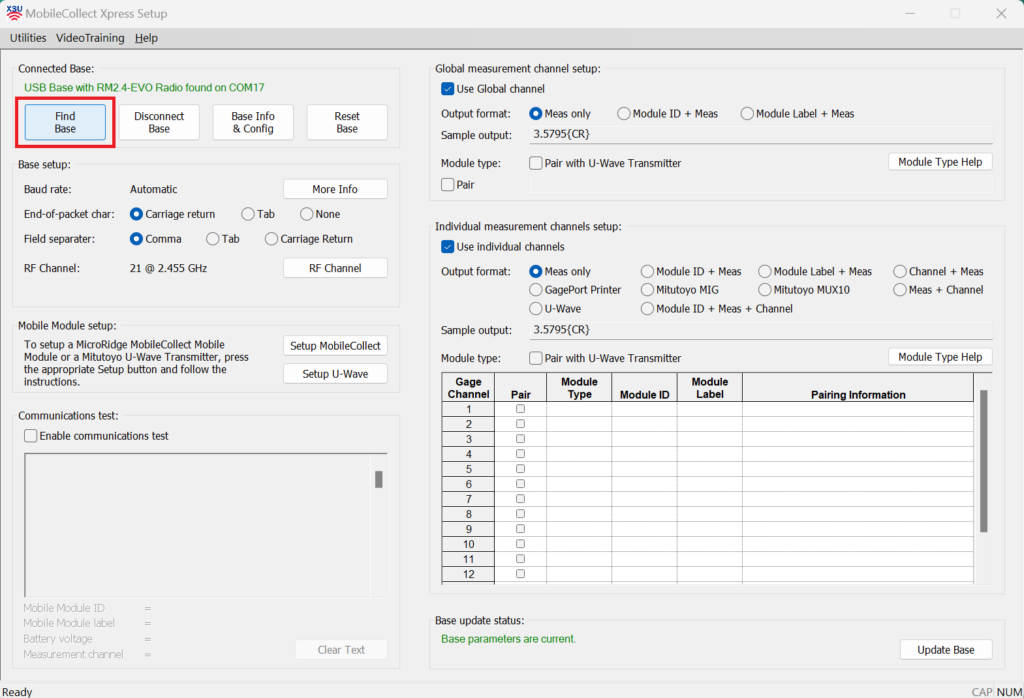

  3. Open Xpress Setup and click on the “Find Base” button.
  4. You should see the base description in green.
    • Click the “Base Info & Config” button if you would like to see additional information about your new MobileCollect Base.

Pairing your Transmitter with Xpress Setup

  1. If you ordered the MobileCollect Base and MobileCollect Transmitter as a kit they are most likely already paired.
    • To test this, select the box “Enable communication test” under ”Communication Test”
    • This box should turn black when it’s ready to accept data.
    • Take a reading with your gage and you should see the measurement show up here.
  2. If  you need to pair your Transmitter and Base, follow the instructions on the video “Associate Mobile Module using Xpress Setup.”

Pairing on the Fly - No Setup Software Needed

If you are unable to download our setup software, you can pair MobileCollect Transmitters on the fly. This process can be done with all MobileCollect Base Receivers, Mobile Module Transmitters and Remote Transmitters.

Mobile Module Transmitter Pairing on the Fly
  1. Put the Mobile Module into Pairing Mode.
    • Press and hold the Setup Button
    • Press and release the Read Button
    • Release the Setup Button
      • Both LED’s (red/green) will start flashing quickly.
  2. Press and release the Reset Button on the back of the Base Receiver to put the Base into Pairing on the Fly mode. This is signified by the left LED’s (green/green/green) turning off and the right LED’s (red/yellow/green) remaining illuminated.
    • To put a MicroBase into pairing on the fly mode, simply unplug it and plug it back in. This is signified by the three LED’s (green/red/yellow) being illuminated.
  3. Press and release the Setup Button on the Mobile Module.
  4. If the pairing was successful, the LEDs (red/green) on the Mobile Module will blink 5 times and the red and yellow LED’s on the Base will turn off. The green LED on the Base will remain illuminated to signify the Base has power.
  5. Note: Pairing on the fly mode in the Base will time out after 10 seconds. Setup mode on the Mini Mobile Module will time out after 15 seconds.
Remote Transmitter Pairing on the Fly
  1. Put the Remote into Pairing Mode.
    • Press and hold the Associate & Test button
    • Press and release the Reset Button
    • When the right LED stack starts flashing, release the Associate & Test button.
      • Right LED stack will continue to to blink for approximately 30 seconds indicating Pairing Mode is enabled.
  2. Press and release the Reset Button on the back of the Base Receiver to put the Base into Pairing on the Fly mode. This is signified by the left LED’s (green/green/green) turning off and the right LED’s (red/yellow/green) remaining illuminated.
    • To put a MicroBase into pairing on the fly mode, simply unplug it and plug it back in. This is signified by the three LED’s (green/red/yellow) being illuminated.
  3. Press and release the Associate & Test Button on the Remote
  4. If the pairing was successful, the left LEDs on the Remote will blink multiple times and the red and yellow LED’s on the Base will turn off. The green LED on the Base will remain illuminated to signify the Base has power.
  5. Note: Pairing on the fly mode in the Base will time out after 10 seconds. Setup mode on the Remote will time out after 30 seconds.

Pairing on the Fly - Full-Size Base

Pairing on the Fly - MicroBase

MobileCollect Feature Guides

MobileCollect is the most powerful and feature rich wireless measurement collection system on the market.

Mobile Module Transmitter Pairing

Xpress Setup Pairing

Pairing on Global and Individual Channels with Xpress Setup.

Extended Setup Pairing

Pairing on Global and Individual Channels with Extended Setup.

Mobile Module Transmitter Configuration

Send Custom Module Labels

Record part “Pass”, “Fail” verdict with the push of a button.

Change Read Mode

Configure continuous read mode, absolute value & TIR modes.

RS-232 V2 Configuration

Configure the RS-232 V2 Mobile Module in Xpress & Extended Setup

OpenGage Mode

Connect any 3V UART device to the Mini Mobile Module EVO M3E

M3 & M3E Connector

Identify M3 and M3E gage connectors and correctly install them into the Mini Mobile Module

Base Receiver Configuration

Change Keyboard Wedge Speed

Slow the Keyboard Wedge speed down if you’re seeing data entry errors.

USB Send All Mode

Compatibility with software that doesn’t utilize the COM Port DTR (Data Terminal Ready) line.

MicroBase Change Output Mode

Switch the MicroBase EVO from Wedge to Serial output.

Remote Transmitter Configuration

RS-232 Remote Pairing & Setup

Pairing and basic configuration for RS-232 Remote with Extended Setup

RS-232 Remote Read Switches

Configure a hand or foot switch to trigger readings from the RS-232 Remote or Base Receiver

System Configuration

Change RF Channel

Switch MobileCollect System to RF channel with minimal noise for maximum performance.

Advanced Setup

If you’re setting up a MobileCollect Remote Transmitter or Command Mobile Module, you’ll need to use Extended Setup.

What other gages can I add to my system?

Meet the MobileCollect Selection Tool

With the MobileCollect Selection Tool, you can easily configure a MobileCollect system with a few clicks of the mouse. All you need is the gage brand, model/code information, and the number of data collection computers you have. The MobileCollect Selection Tool program is free to download and is updated annually.

Learn About MobileCollect Selection Tool

Quick Start Guide & User Manuals

MobileCollect Extended Setup Users Guide
MobileCollect Extended Setup Users Guide
Full user’s guide for MobileCollect Extended Setup, the configuration utility used to set up and …
Download
MobileCollect Hardware Components User Guide
MobileCollect Hardware Components Users Guide
This guide documents every hardware component in the MobileCollect wireless system: Mobile Module and Remote …
Download
MobileCollect Xpress Setup Users Guide
MobileCollect Xpress Setup Users Guide
Full user’s guide for MobileCollect Xpress Setup, the streamlined configuration utility used to set up …
Download

MobileCollect QuickStart Guide Shareable Link

MobileCollect QuickStart Guide (https://microridge.com/mc-quickstart)
