Wireless gage data collection

MobileCollect Wireless: Every gage in the cell or station, sending to one PC

Put a transmitter on each gage and a base receiver on the PC. Readings land in your SPC software, Excel or database the moment the operator presses read, from any brand of gage. No cables between the gage and the computer.

3,856 gage models from 116 manufacturers connect
Mix brands and transmitter types on one base
Each reading tagged with its gage

Build your system Request a demo kit

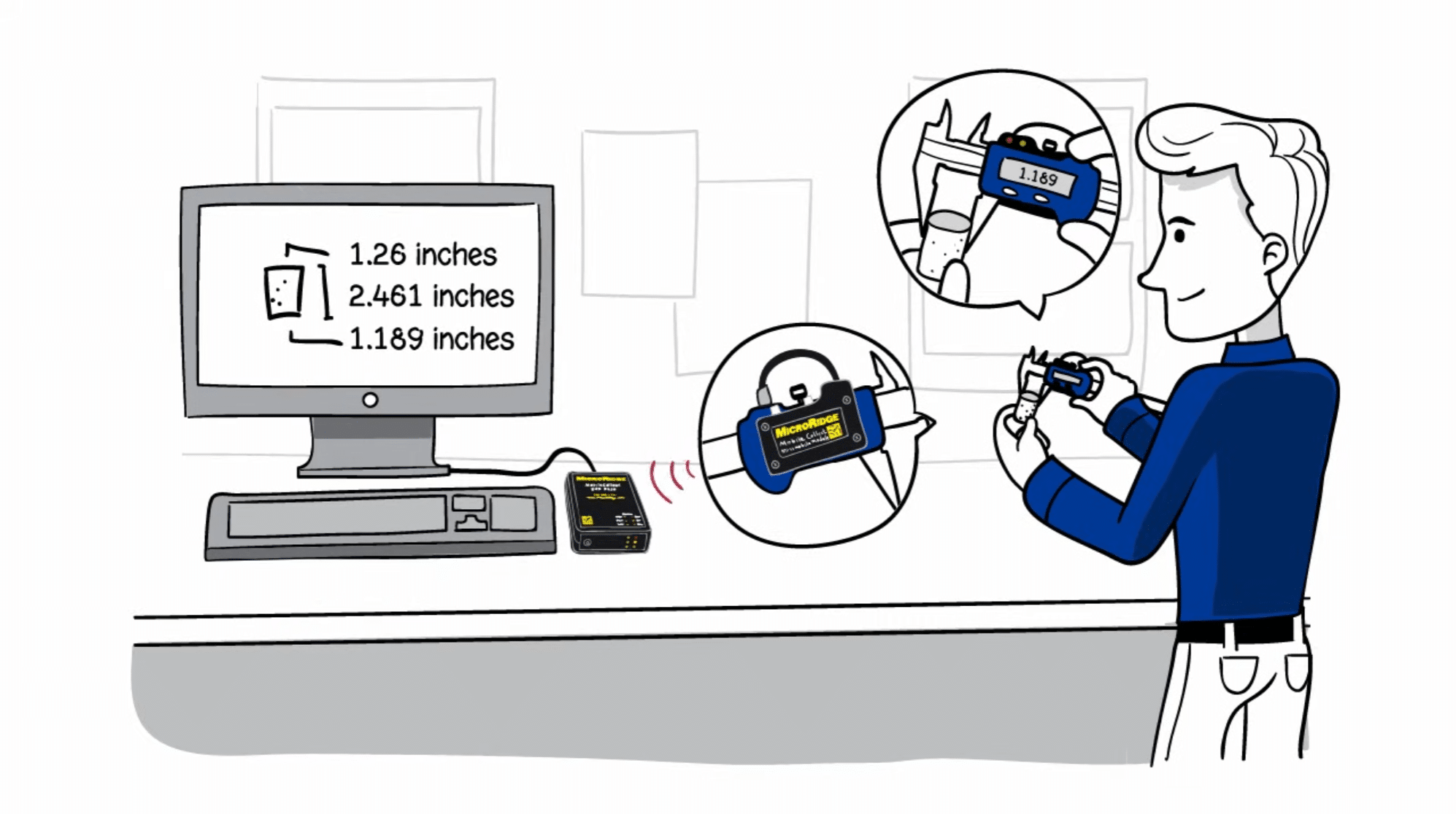

How MobileCollect works: a caliper, micrometer, indicator, height gage and bench scale, each with a MobileCollect transmitter (Shape Transmitter, Mini Mobile Module EVO, Command Mobile Module or RS-232 Remote), send readings over RM2.4 wireless to one MobileCollect Base at the PC. The base passes each reading over USB to SPC software, Excel or a database, tagged with the transmitter's module ID.

In this system: Shape Transmitter, 2 Mini Mobile Module EVO, Command Mobile Module, RS-232 Remote, 1 MobileCollect Base.

Build your system →

Built on RM2.4, a wireless protocol made for gage data

The radio link between every MobileCollect transmitter and the base: long range, years on a coin cell, no set limit on how many gages pair to one base, and a quiet, encrypted channel built for gage readings. Learn more about RM2.4 →

140+ ftRange from gage to base

Up to 140 ft from a transmitter to a full-size base such as the Wedge Base EVO, and up to 100 ft to the small dongle-style MicroBase EVO that plugs straight into a USB port. Machines, walls and metal shelving between them can shorten it.

YearsOn a single CR2032, with Smart Battery Management

The Mini Mobile Module EVO and Shape Transmitters run 800,000+ readings on one CR2032 coin cell. Smart Battery Management sets how often each one checks in with the base, every few seconds on average: faster while the gage is in use, slower when it sits idle. Three schemes target 9 months, 1.5 years or 2+ years. Each reading can carry the battery voltage, so you see a low battery coming.

APIPair, set up and trigger gages from your own software

The free MobileCollect EVO API is plain ASCII commands over the base's USB serial port. Your software can pair transmitters, set the data format for each channel and read base details. With TriggerSync it can request a reading, start and stop TIR, or blink a transmitter's LEDs to find it. With GageSync it pulls a Mitutoyo S1 gage's serial number and calibration dates and can zero the gage.

Read the API Implementation Guide →

Quiet RFStays on the channel you pick and is on the air only in short bursts

A 2.4 GHz radio on one channel you choose (11 to 25), on the air for under 20 ms per reading, with acknowledgments and retries so readings are not lost. EVO transmitters also check in briefly with the base so software using TriggerSync and GageSync can reach them: every few seconds on average with Smart Battery Management, and never more often than every 500 ms. It never joins your WiFi or network.

EncryptedMeasurement data secured in transit, with a unique USB PID/VID certified by USB-IF

The radio link between transmitters and base uses 32-bit encryption. The base has its own USB vendor and product ID (VID/PID), certified by USB-IF, so IT can identify it exactly, and it shows up on the computer only as a USB keyboard or a COM port: nothing joins your network.

Wireless RS-232Scales, DROs and other RS-232 instruments send wirelessly too

The USB-powered RS-232 Remote suits bench instruments that stay put: it detects the baud rate when you press the instrument's print button and can keep just the number you need. The battery-powered RS-232 Mobile Module V2 goes on RS-232 instruments that move.

MobileCollect Wireless

Will MobileCollect work with your gage?

3,856 gage models from 116 manufacturers connect to MobileCollect. Check yours and see which transmitter connects it.

Try:

Not sure what you need? Describe your application to the System Advisor →

Shop MobileCollect

Buy MobileCollect

A transmitter for each gage, one base, and a cable for each Mobile Module or Remote. Made in Sunriver, Oregon.

Not sure?System BuilderAnswer a few questions, get a full parts list.System AdvisorDescribe your gaging process, get a recommended setup.

1. Transmitters

Shape transmittersMount directly on the gage.

Direct gage mount

MC-S-MIC01Shape Mic 01

Mounts directly on Mitutoyo micrometers.

Fits gages that use the 05CZA662 or 05CZA663 cable.

$365Add to cart

Direct gage mount

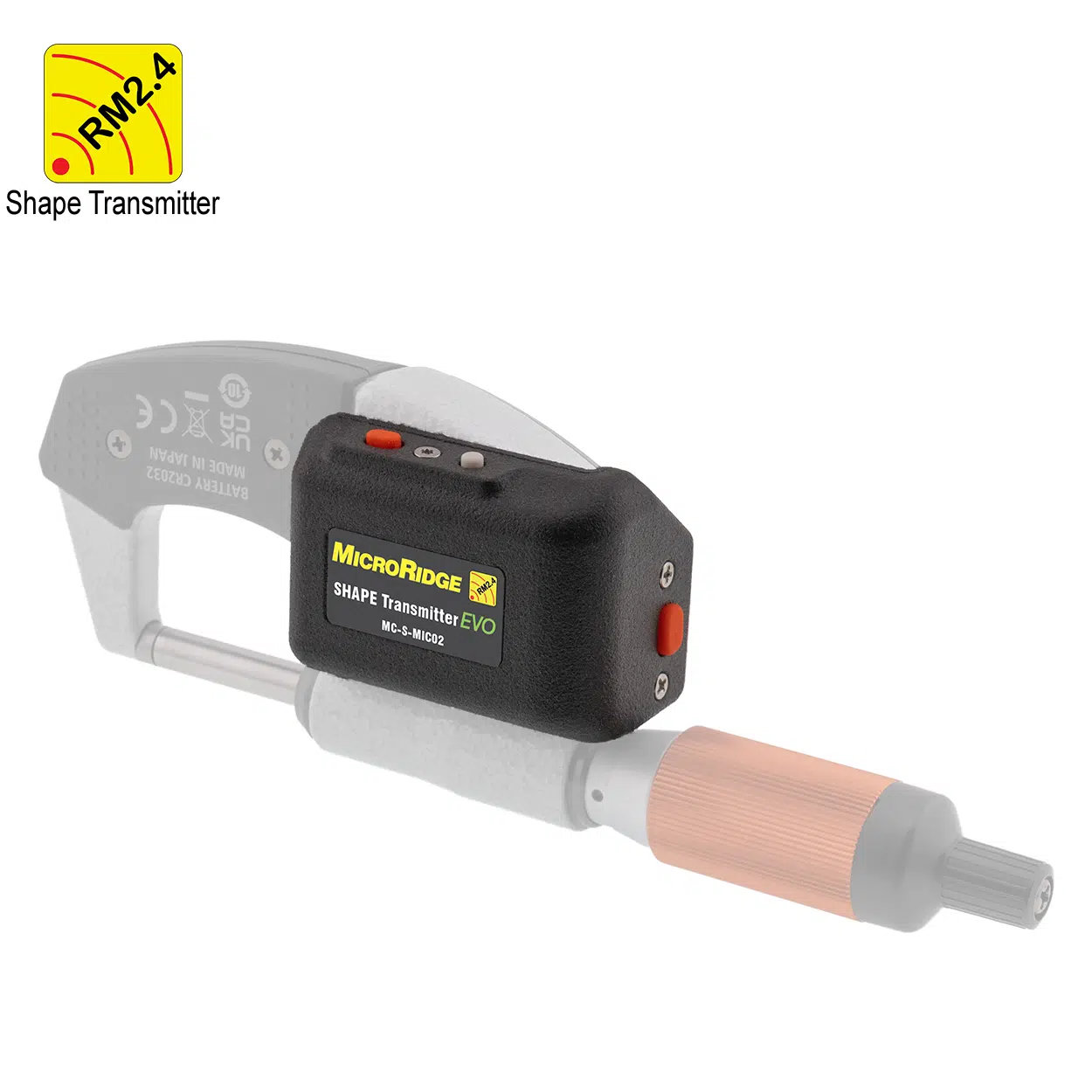

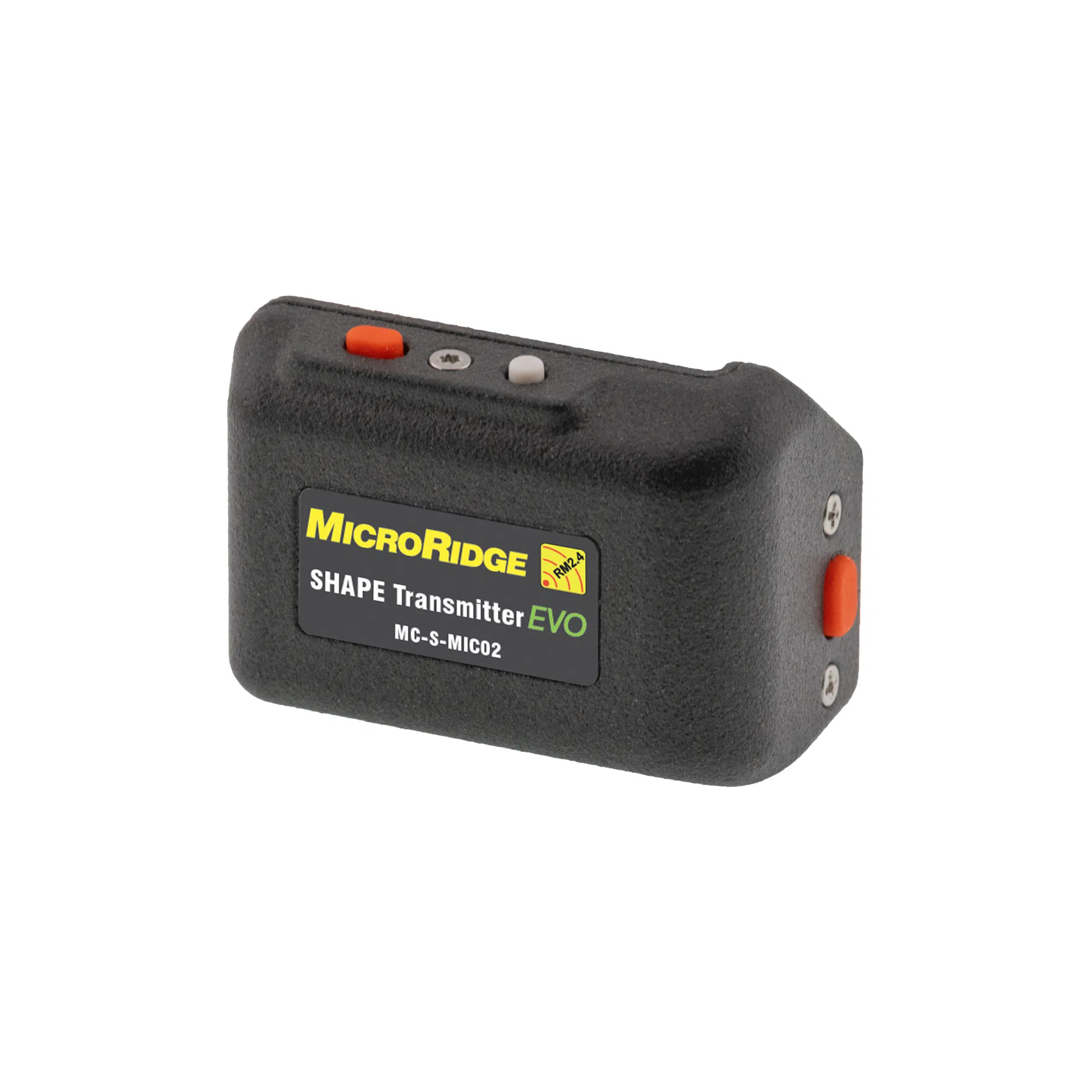

MC-S-MIC02Shape Mic 02

Mounts directly on the Mitutoyo QuantuMike.

Fits gages that use the 06AGL111 or 06AGL121 cable.

$365Add to cart

Mobile ModulesBattery powered. Move with the gage. Need a cable.

Uses Mini cables

MC-MM-M3-EVOMini Mobile Module EVO (M3E)

Battery powered. Digital gages with a data port.

$285Add to cart

Uses Command cables

MC-MM-DCCommand Mobile Module (DC)

Battery powered. Readings can be triggered from the base.

$395Add to cart

Uses RS-232 V2 cables

MC-MM-V2RS-232 V2 Mobile Module (V2)

Battery powered. RS-232 gages and instruments.

$395Add to cart

Desktop RemotesUSB powered, for stationary gages. Need a cable.

Uses gage data cables

MC-REM-DIGDigital Remote

USB powered, for stationary digital gages.

$450Add to cart

Uses RS-232 gage cables

MC-REM-RS232RS-232 Remote

USB powered, for stationary RS-232 instruments.

$450Add to cart

2. Base Receivers

MC-MB-C-EVOMicroBase EVO USB C

Plugs straight into a USB-C port. Keyboard or USB serial output.

$450Add to cart

MC-MB-A-EVOMicroBase EVO USB A

Plugs straight into a USB-A port. Keyboard or USB serial output.

$450Add to cart

MC-BASE-KW-EVOWedge Base EVO

Desktop base on a cable. Keyboard or USB serial output.

From $495Options

MC-BASE-RS232-EVORS-232 Base EVO

USB serial, or RS-232 out a DB9 for PLCs and serial software.

$495Add to cart

3. Gage Cables

Pick your transmitter and the gage brand.

Your transmitter

Gage brand

Showing cables forMini Mobile Module EVOCurrent model. Battery powered, for digital gages with a data port.

Uses Mini cables

Mini Mobile Module (M3) Legacy model, retired May 4, 2026. The same Mini cables fit it.View →

Which cable fits?MiniCommandRS-232 V2OEM DigimaticMicroRidgeRS-232

Cable type	Mini Mobile Module + EVO	Command Mobile Module	RS-232 V2 Mobile Module	Digital Remote	RS-232 Remote	GageWay
Mini Mobile Module CablesM3 (2x3) or M3E (2x4) plug	✓ fits	–	–	–	–	–
Command Mobile Module CablesCommand (DC) plug	–	✓ fits	–	–	–	–
RS-232 V2 Mobile Module CablesV2 plug	–	–	✓ fits	–	–	–
OEM Gage Cables (10-pin Digimatic)The gage maker's data cable	–	–	–	✓ fits	–	✓ fits
MicroRidge Interface CablesMicroRidge-made gage cable	–	–	–	✓ fits	–	✓ fitsPro only
RS-232 Gage CablesDB9 RS-232 cable	–	–	–	–	✓ fits	✓ fits
