Wirelessly connect your TruPosition digital probe to your SPC software or any data collection application — eliminating manual data entry errors at the point of measurement. This is the Mini Mobile Module EVO (M3E) connector for TruPosition probes that use Mitutoyo caliper read units for true position hole location verification. The output format from this cable is Mitutoyo Digimatic compatible. Pairs with the Mini Mobile Module EVO M3E transmitter to bring your probe online with MobileCollect.
Transmitter Family – Mini Mobile Module EVO (M3E)
Connector Variant – M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters
Standard Cable Length – 8.0″
SKU – MC-M3-TRU-POS-8
Required Hardware – Mini Mobile Module EVO (M3E) and MobileCollect Base
Read Button – No
Connector IP Rating – N/A
Gage Brand – TruPosition
$190.00
The M3 Wireless Connector for TruPosition probes is the link between your TruPosition digital true position probe and the MobileCollect Wireless measurement collection system. TruPosition probes are portable handheld instruments used to verify that hole, slot, and weld nut locations meet GD&T true position tolerances — a critical measurement in automotive, aerospace, and precision manufacturing. This connector enables that measurement data to transmit wirelessly to your SPC software, eliminating manual recording and transcription errors.

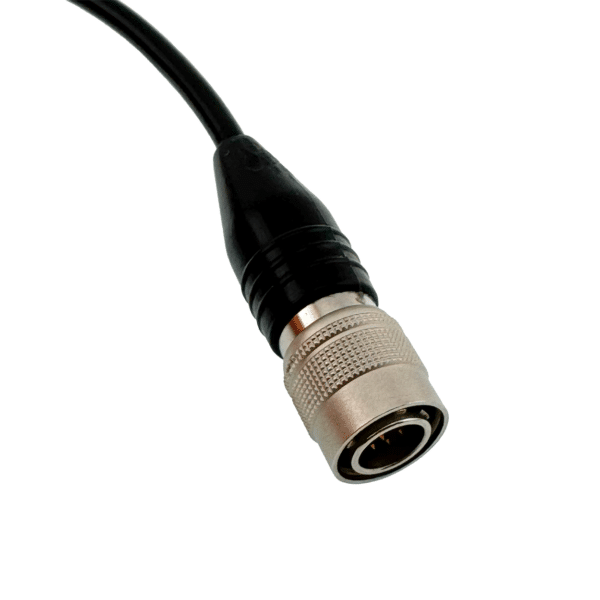

This connector attaches directly to the TruPosition gage’s data output and plugs into a Mini Mobile Module EVO (M3E) transmitter — together, they replace a standard wired SPC cable with a compact wireless setup. Each reading transmits wirelessly from the Mini Mobile Module EVO to a MobileCollect Base receiver connected to your PC or data collection workstation.
This connector works with TruPosition digital probes that have SPC data output, including:
These probes contain 2 Mitutoyo Digimatic caliper read units that measure X and Y axis displacement simultaneously to calculate true position. The wireless connection through MobileCollect captures both axis readings directly into your SPC system.
Not sure if this connector works with your TruPosition probe? Contact sales@microridge.com or use the MobileCollect Selection Tool to verify.
True position verification is one of the most common GD&T callouts in manufacturing — and one of the most error-prone when data is recorded manually. An operator reading two axis values from the probe display and keying them into a spreadsheet introduces transposition risk on every measurement. Wireless data capture eliminates that failure mode entirely, which directly supports process capability studies and audit readiness under ISO 9001, IATF 16949, or AS9100D.
MicroRidge also offers the TruPosition gage cable/connector for other transmitters in the MobileCollect family:
DC Connector — TruPosition Gage Cable — For the Command Mobile Module wireless transmitter. Use the Command Mobile Module when you need two-way wireless communication — for example, triggering gage readings across multiple transmitters simultaneously from the MobileCollect Base or your SPC software. This is common on large fixtures or multi-point measurement setups where operators can’t physically press each gage’s data send button.
MobileCollect is a brand-agnostic measurement collection platform — it doesn’t lock you into a single gage manufacturer. Whether your shop floor runs Mitutoyo calipers alongside Mahr micrometers, Starrett indicators, or Fowler height gages, MobileCollect connects them all into a single wireless SPC data network. This connector is one component in that system. To complete the wireless link, pair it with a Mini Mobile Module EVO transmitter (MC-MM-M3-EVO) and a MobileCollect Base Receiver.

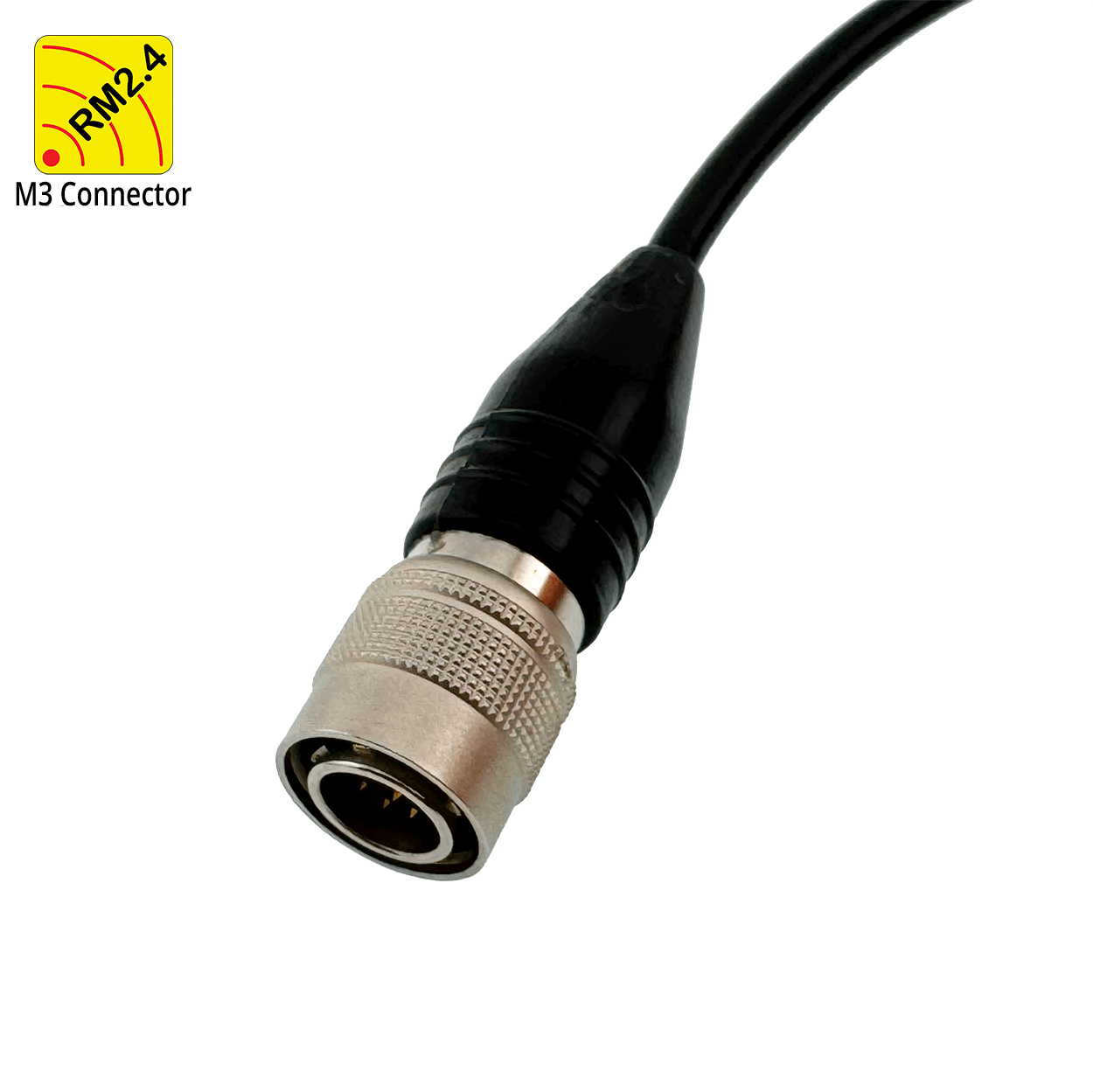

This is the M3 variant of this cable. It uses a 2×3, 6-pin connector that plugs into the Mini Mobile Module transmitter.
Transmitter compatibility: This M3 cable is fully compatible with both the current Mini Mobile Module EVO M3E transmitter and the retired M3 transmitter. No adapter, firmware change, or configuration required — it plugs directly into either.
This Cable Supports:
See the Mini Mobile Module EVO Connector Compatibility Guide for photos of all four connector and transmitter combinations, including how M3 and M3E cables seat on each transmitter generation.
This cable supports TriggerSync. TriggerSync is a measurement mode where a reading is triggered from the MobileCollect Base Receiver or directly from your SPC application, without a manual button press at the gage. TriggerSync will enable automated data collection across all of your digital gages. This feature is currently under development and scheduled for release in Q3 2026.
MC-M3-TRU-POS-8 Specs | |
|---|---|
Transmitter Family | Mini Mobile Module EVO (M3E) |
M3 Cable/Connector Variant | M3 (2×3, 6-Pin) — TriggerSync Ready | Compatible with M3 and M3E Transmitters |
Standard Cable Length | 8.0 inches |
SKU | MC-M3-TRU-POS-8 |
Required Hardware | Mini Mobile Module EVO (M3E) & MobileCollect Base |
Read Button | No |
IP Rating | N/A |
Gage Brand | TruPosition |
