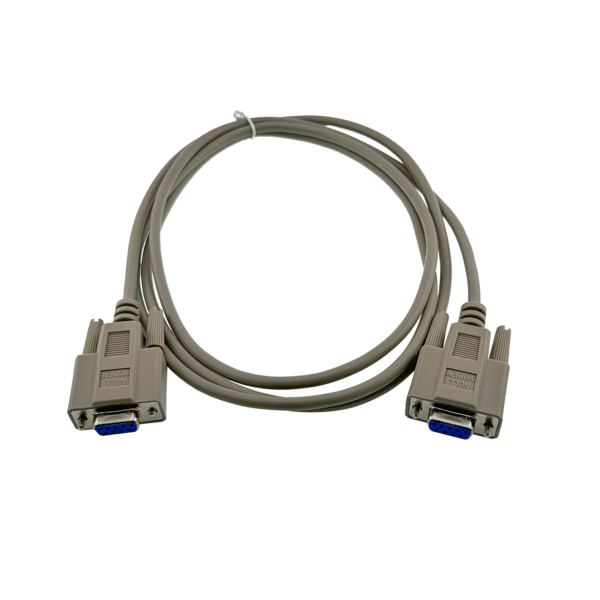

A 6-foot, 9-pin RS-232 null modem cable with female DB9 connectors on both ends (DB9F to DB9F). Crosses Transmit and Receive signal lines to allow two DTE devices — such as an RS-232 gage interface and a host PC or SPC data collection system — to communicate directly without a modem.
Connector Type – DB9 Female to DB9 Female
Length – 6 ft
Cable Type – Null Modem — Tx/Rx crossed
Compatible Interfaces – WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels)
Pin Count – 9-pin
$12.00
A null modem cable is a serial cable in which the Transmit (Tx) and Receive (Rx) signal lines — and typically the associated handshaking lines — are crossed between the two connectors. This wiring configuration allows two Data Terminal Equipment (DTE) devices to communicate directly without a modem or protocol converter.
Standard straight-through RS-232 cables route each pin to the same pin on the opposite end. When two DTE devices are connected that way, the Tx output of each device connects to the Tx input of the other — and no data flows. A null modem cable resolves this by routing each device’s output to the other device’s input. For a deeper explanation of DCE/DTE roles, straight-through vs. crossed wiring, and how RS-232 signal flow works, see our RS-232 Interface Guide.
In industrial metrology and SPC data collection setups, a null modem cable is needed when both connected devices present a DTE serial configuration — which is common when connecting an RS-232 gage interface directly to a host computer or data acquisition terminal:
If a gender changer alone doesn’t resolve a connection issue and a straight-through cable produces no output, a null modem cable is typically the correct next step. For non-standard or proprietary pinouts where a null modem still doesn’t work, see the ProAdapter.
Need a different DB9 connectivity solution? All four accessories are designed to work together with MicroRidge RS-232 gage interfaces:
Q: What is the difference between a null modem cable and a straight-through serial cable?
— A straight-through cable maps each pin to the same pin on both ends. A null modem cable crosses Tx and Rx (and related handshaking signals), allowing two DTE devices to communicate directly without a modem in between.
Q: Will this cable work with the WedgeLink SP?
— Yes. The DB9 Null Modem Cable is compatible with both WedgeLink AT and WedgeLink SP when the connection requires crossed Tx/Rx signal lines.
Q: Do I need a Level Converter Cable to use this with a GageWay Pro?
— It depends on which port you’re using. If you are connecting a single RS-232 device, you can use the RS-232 multifunction port on the back of the GageWay Pro directly — no Level Converter Cable required. If you need to use the front-panel gage channels with an RS-232 device, the Level Converter Cable (GW-LC) is required, and the DB9 Null Modem Cable then connects at the RS-232 output of that assembly.
Q: What if a null modem cable doesn’t solve my connection problem?
— If the connected device uses a non-standard or proprietary pinout, the ProAdapter is the appropriate next step. It allows you to assign any signal to any pin without soldering.
DB9-NFF-6 Specs | |
|---|---|
Connector Type | DB9 Female to DB9 Female |
Length | 6 feet |
Cable Type | Null Modem — Tx/Rx crossed |
Compatible Interfaces | WedgeLink AT, WedgeLink SP, MobileCollect RS-232 Remote, GageWay Pro (Lever Converter for front channels) |
Pin Count | 9-pin |
The DB9 Null Modem Cable connects 129 RS-232 gage and instrument models from 52 manufacturers to the RS-232 Remote, WedgeLink AT and WedgeLink SP and to a GageWay wired interface. Most of them are displays and counters, scales and balances and height gages. Every model below is matched to this part in the MicroRidge Measurement Collection System Builder.
The DB9 Null Modem Cable is a null modem cable, female on both ends, with transmit and receive crossed. It fits instruments that send their readings on pin 3 of a DB9 port, wired like a PC’s COM port. 16 models below also need the DB9 Adapter Kit: their DB9 port is the wrong gender for this cable, or their plug or wiring is not confirmed, and the kit’s gender changers and null modem adapters cover both.
Not sure about your model? Look it up in the RS-232 Connection Configurator. It gives the instrument’s serial settings, the cable and wiring, and the WedgeLink that reads it. Null modem or straight-through?
Height gages: 4429010 / 4429011 / 4429012, Digimar 817 CLM (DB9 male)
Hardness and surface testers: Perthometer M1
Displays and counters: 5318400, 5318402, 5318455, 5318457, C1208, C1216, C1240, C1245, Millimar C1208, Millimar C1216, Millimar C1240, Millimar C1245, S 1840, S 1840 PE
Other gages: 832, Dimensionair 832 (DB9 male)
Height gages: 518-321-20A, 518-352A-21, LH 600E
Micrometers: LSM-6000, LSM-6200, LSM-6900 (544-496A), LSM-9506 (544-116-1A)
Displays and counters: 542 series, 542-063 / 542-064 / 542-067
Other gages: 264 Series, RA-220, RS-232-120, VL-50A, VL-50AS, VL-50B, VL-50BS
Scales and balances: CBC Series, CBD Series, CBK Series, CPW Plus, GBK Series, GFK Series, GK Series
Other gages: NBL Series
Force and torque gages: Pro-Test 60, 400 & 1500, Q2780, TST 2, TST 10, TST 25
Force and torque gages: 5000-1 / 5000-2 / 5000-3, 5000-ST, Multitest Indicator, VERSATORQ 1
Hardness and surface testers: Rockwell 2000, WH574R, WH574S, WH574T
Other gages: DMA 4100, DMA 4500, DMA 5000
Other gages: C28DP, Sentinel C20WE, Sentinel C28WE
Height gages: Trimos Mestra, Trimos Mestra Touch, Trimos Vectra Plus
Displays and counters: ND 280, ND 287, ND 780
Other gages: 3544-01, 3561-01, 3562 Series
Scales and balances: 1/A2, AS-R PLUS Series, PS-R Series
Height gages: Mestra, Mestra Touch, Vectra Touch
Other gages: Accu-Touch, E8300 / E8302 / 5911013
Indicators: 350, 350 / 355 Series
Force and torque gages: 1590, 1600
Displays and counters: MX100, MX200
Scales and balances: IND 231, IND231
Other gages: RS232 NULL - Female, RS232 NULL - Male
Displays and counters: 200S
Other gages: 34401A
Scales and balances: Wizard 900
Scales and balances: 180 & 180EU
Scales and balances: Apex
Other gages: CVIC
Height gages: Ultima M / Ultima H
Other gages: 8808A
Other gages: 2100N
Other gages: 34401A
Other gages: MMP
Other gages: CMZ 200
Scales and balances: PNJ & PNS Series
Hardness and surface testers: LR / LCR series
Other gages: LF-Plus
Other gages: 751
Hardness and surface testers: Series 400
Displays and counters: Q-Check
Scales and balances: Equipoise
Other gages: ProTear
Scales and balances: 3400
Indicators: TI-500E Plus
Hardness and surface testers: Tru-Blue II
Indicators: TI-500E
Scales and balances: HT/HTR Series
Scales and balances: VWR-E
Hardness and surface testers: 130A
